The term urogenital system compromises the genital and urinary organs. Besides having different tasks, they have a common embryological origin and are often diseased in relation to each other in a clinical perspective. The following article focuses on the diverting urinary organs, therefore the part from the ureters to the urinary bladder up to the urethra is regarded. The physiology also attracts attention concerning the micturition process apart from the anatomic aspect.

Are you more of a visual learner? Check out our online video lectures and start your histology course now for free!

female_and_male_urethra

Image: “The urethra transports urine from the bladder to the outside of the body. This image shows (a) a female urethra and (b) a male urethra.” by Phil Schatz. Licence:CC BY 4.0


Ureter

ureter

Image: “Peristaltic contractions help to move urine through the lumen with contributions from fluid pressure and gravity. LM × 128. (Micrograph provided by the Regents of the University of Michigan Medical School © 2012).” by Phil Schatz. Licence :CC BY 4.0

These are hollow organs, organised in pairs which have an average length of 25-30 cm and connect the renal pelvis with the urinary bladder. The right ureter is compared to its partner a bit shorter which correlates with the fact that the liver is located on the right side and quite large.

Course of the ureters

urinary-system

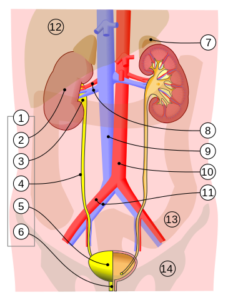

Image“Ureter (Schematic View)
1. Human urinary system: 2. Kidney, 3. Renal pelvis, 4. Ureter, 5. Urinary bladder, 6. Urethra. (Left side with frontal section), 7. Adrenal gland
Vessels:
8. Renal artery and vein, 9. Inferior vena cava, 10. Abdominal aorta, 11. Common iliac artery and vein
With transparency:
12. Liver, 13. Large intestine, 14. Pelvis
” by Jordi March i Nogué . Licence: CC BY-SA 3.0

Starting at the renal pedicle, the ureters run at first along the lateral edge of the M. psoas major in the retroperitoneal space from which point they cross under the A. and V. testicularis or ovarica and finally cross over the A. and V. iliaca communis.

The ureters cross the little pelvis and cross under the Ductus deferens or the A. uterine. Finally, they flow from the back in the urinary bladder. The diagonal entry is inasmuch appropriate as the ureters are for example pressed together by the surrounding muscles when lying down, so that the urine cannot flow back.

The ureters pass 3 physiological obstacles, the so-called ureter narrowings which dispose a inhibition for the transport, for example concerning the discharge of urinary calculi:

  1. Upper narrowing: exit area from the renal pelvis
  2. Middle narrowing: Crossing of the A. iliaca externa or Communis
  3. Lower narrowing: Passing through of the urinary bladder wall

The ureter can anatomically be divided into 3 areas:

  1. Pars abdominalis (kidney to Linea terminalis, back abdominal wall)
  2. Pars pelvina(Linea terminalis to urinary bladder)
  3. Pars intramurales (diagonally passes the bladder wall, important for the micturition process)

Note: The ureters are divided differently in a radiological context: The upper third (renal pelvis to the upper end of the Os sacrum), the middle third (upper to lower edge of the Os sacrum) and the distal third (lower sacrum edge to urinary bladder).

Histology/Microscopic anatomy of the ureter

Ureters consist of the following layers from the inside to the outside:

  • Wall of the ureter

    Wall of the ureter

    Tunica mucosa: Urothelion of 4-5 cell layers which encloses a stellar lumen

  • Tela submucosa or Lamina propria: loose connective tissue
  • Tunica muscularis: spirally organised muscular tissues which are responsible for the peristalsis. It is again divided into:
    • Stratum longitudinale
    • Stratum circulare
    • second Stratum longitudinale (only in the pelvis area)
  • Tunica adventitia: connective tissue layer in which the blood and nerve vessels are located

Function of the ureter

One the one hand, the ureters serve as a connection between the kidney and the urinary bladder.

One the other hand, their task is to transport the urine. The by-products filtered by the kidney are lead in relation with water as urine or secondary urine to the ureters from the kidney in the Vesica urinaria (urinary bladder).

ultrasound-demonstration-of-ureteral-jet-effect

Image: “Ultrasound demonstration of ureteral jet effect” by Nevit Dilmen. Licence:CC BY-SA 3.0

Peristaltic movements of the hollow organ are possible through the Tunica muscularis, so that the urine can also be transported in other body positions than standing in the direction towards the urinary bladder. The peristaltic wave takes place 1-4 times per minute. Through relaxation, the urine is absorbed in the ureter and is transported caudally through the contraction of the wall.

Vascular supply of the ureter

Arterial:

The supply is assured by small branches of the surrounding arteries or the Rami ureterici which arise from the arteries in the surroundings. The following arteries are involved:

  • Pars abdominalis: A. renalis, A. testicularis (men) bzw. A. ovarica (woman)
  • Pars pelvica: A. iliaca communis, A. iliaca externa et interna with its visceral branches

Venous:

The venous return passes the veins which run analogically along the arteries and also have the same name.

Nerval:

The muscle contraction of the ureters is caused by the pacemaker cells of the renal pelvis calicopelvic system, so that the ureters contract from cranial to caudal and transport the urine in the direction of the urinary bladder.

The vegetative nerve system has the following influence:

The sympathetic innervation is assured by the Ganglia aorticorenalia and the Plexus hypogastricus inferior. These influence the regulation of the vascular tone by inhibiting the ureter peristalsis.

The ureters are supplied parasympathetically through the Nervi splanchnici pelvici and partly through the Nervus vagus. These provide support and promotion of the ureter peristalsis.

Lymphatic

The lymphatic drainage of the left upper ureter takes place in the paraortal lymph nodes and the one of the right upper ureter takes place in the paracaval and in the interortocaval lymph nodes. The lower part of the ureter drains its lymph-obliged load in the Nodi lympahtici iliacae et obturatoriae (pelvis lymph nodes).

Diseases and malformations of the ureter

Malformations:

In case of malformations of the ureter, the result is a disturbed urine transport or a reflux. These can again cause several secondary diseases: Hydroureter (extended ureters), recurring infections, inflammations of the kidney and its pelvis, formation of kidney and urinary calculi up to renal insufficiency.

In case of a constant reflux, it is possible that the inflammations of the renal pelvis and the urinary bladder are chronified. The manifested inflammations can again cause a malakoplakia (grey-whitish plaque at the ureter wall) or a Urerteritis cystica.

The most common malformations are amongst other things the ureteroceles, ureter orifice narrowings and ureterectopies.

Ureter calculi, urinary calculi, kidney calculi:

The possibility for a formation of calculi increases with increasing age in which men and women are affected equally.

The so-called calculi or these crystal accumulations can be caused by too strongly concentrated urine accumulations, excessive meat consumption, inflammations or as well a congenital distraction of the deterioration of certain by-products, in which they do not dissolve in urine and therefore accumulate as crystals.

The prominent part of the calculi, about 70%, consist of calcium oxalate and are produced through a lack of calculi formation inhibiting substances or through an excess of calcium or oxalate. 10-15% of the calculi are induced by seasoned purine bodies or excessive meat or alcohol consumption. Further calculi are infection, cysteine and xanthic stones which occur only rarely.

Uretercarcinoma:

In the case of this malignant tumour, there are in 95% malignant new formations of the urothelion. The squamous epithelium is rarely affected. It occurs very rarely in which men at the age of 50 to 60 are affected the most.

Symptoms regularly occur lately. They appear in the form of microscopic hematuria or macroscopic hematuria. Additionally, a ureter blockade can cause a one-sided urinary retention through the tumour. In most cases, pain only occurs when the metastasis takes place in the carcinoma. The first metastasis are regularly in the liver, in the lungs or the skeleton system.

Urinary Bladder

The Vesica urinaria is a muscular hollow organ which contains, depending on the size, 800-1500 ml urine fluid.

bladder

Image:< “(a) Anterior cross section of the bladder. (b) The detrusor muscle of the bladder (source: monkey tissue) LM × 448. (Micrograph provided by the Regents of the University of Michigan Medical School © 2012)” by Phil Schatz. Licence:CC BY 4.0

Location of the urinary bladder

The urinariy bladder is located retroperitoneally and is limited ventrally by the symphysis and the abdominal wall. In between lies the Spatium retropubicum, which is filled with loose connective tissue and makes a cranial extension of the bladder in case of the corresponding filling possible.

The upper area of the urinary bladder is covered with peritoneum which is situated from the Apex vesicae to the contact point with the ureters. The bladder is fixed from ventral cranial through the Lig. Umbilicale medianum (Apex vesicae to navel). The peritoneal pouch is located on the backside of the bladder (man: Excavatio rectovesicalis, woman: Excavatio vesicouterina). To caudal, the bladder is limited by the levator gap.

The prostate is located under the Fundus vesicae.

Anatomie of the urinary bladder

Anatomically, 4 areas exist:

  • Apex vesicae:the cranial area, covered by the peritoneum
  • Corpus vesicae:bladder body
  • Fundus vesicae: bladder base, on the inside the Trigonum vesicae is formed which is of Ostia ureterum (entries of the ureters) and the Ostium urethrae internum (exit of the urethra), cranial limitation through the Plica interureterica (fold of the mucous tissue between the ureters)
  • Cervix vesicae: bladder neck, funnel-shaped

Microscopic analysis:

The urinary bladder is composed as follows from the inside to the outside:

  • Tunica mucosa:Urotehlion, in the Trigonum vesicae is the Tunica mucosa (Lamina propria is missing)
  • Tela submucosa:Lamina propria (loose connective tissue), does not exist in the clinging Trigonum vesicae
  • Tunica muscularis: smooth muscles which works as a functional entity in form of the M. detrusor vesicae, but is differentiated again as follows:
    • Stratum longitudinale internum
    • Stratum circulare
    • Stratum longitudinale externum
  • Tunica adventitia: loose connective tissue, Tela subserosa called in the peritoneal covered area
  • Tunica serosa: partially existing peritoneal layer

Holding muscles of the urinary bladder

The bladder is only fixed on two points on the pelvic floor in order to cranially extend while filling up. These points are the Fundus and the Cervix vesicae.

But there are additional ligament mechanisms:

  • pubovesicale(Symphysis – Fundus vesicae)
  • puboprostatica(Symphysis – Prostata)
  • Septa rectovesicalia (female: Os sacrum – rectum, male: Os sacrum – rectum – prostate)

Vascular supply of the urinary bladder

Arterial:

  • vesicalis superior:supplies Apex vesicae and Corpus vesicae
  • vesicalis inferior:supplies Fundus vesicae
  • rectalis media:supplies the dorsal side of the bladder

Venous:

The venous return is taken over by the Plexus venosus vesicalis.

Nerval:

The sympathetic innervation happens through the Plexus vesicalis (Th12 – L1).

The urinal bladder is parasympathetically supplied by the Plexus hypogastricus inferior (S2 – S4).

M. Sphincter vesicae

The sphincter muscle of the urinary bladder serves as a closure mechanism and contains smooth as well as striated muscles. It has close contact to the muscles of the pelvic floor, but should strictly be distinguished from it.

The „smooth urinary bladder sphincter“, also called lissosphincter, circularly and longitudinally encloses the bladder neck from the Trigonum vesicae.

The striated part of the sphincter is hoof-shaped. There are again differences concerning its concrete place between the male and female wing: In the female body, the muscle fibres surround the proximal to middle area of the urethra. In the male body, the striated part of the prostate runs through the whole extension of the membranous urethra.

Received and congenital disorders of the urinary bladder

Because of the mass of different diseases and restrictions, not everything can be mentioned and explained in this section. Therefore, only the most important disorders are named and briefly explained.

One of the most common diseases of the urinary bladder is the inflammation of the bladder, or cystitis, which is accompanied by pain in the lower abdomen and painful passing of water. The infection often ascends from the urethra and as women have a shorter urethra, they suffer from it more often.

Physical influences (for example stress or fear) or physical impacts (for example in the case of paraplegia, detrusor-sphincter-dyssynergy) can cause a dysfunction of the closure mechanism and hence a urinary incontinence. In particular, stress and burden incontinence is distinguished from urge incontinence.

A prostatic adenoma can cause a very uncomfortable urinary retention. This again can lead to an extension of the bladder up to a strain (Vesica gigantea).

An important issue in this section is of course the bladder carcinoma. In most cases, it comes from the urothelion and usually causes only in the later stages symptoms like pain, micturition disturbances (“stuttering urination”) or urine discoloured by blood. Men are more often affected than women and smoking is considered to be the main risk factor.

transcellcamark

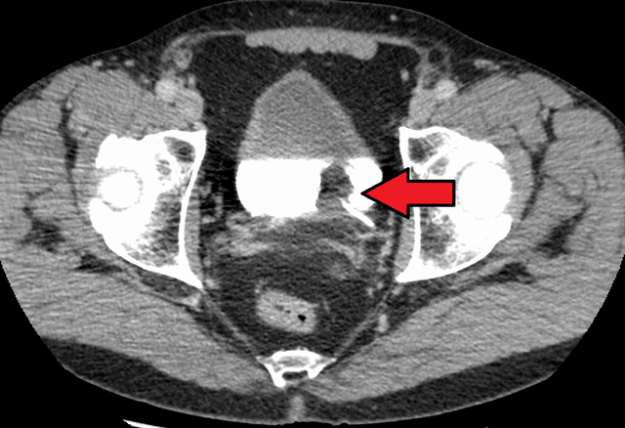

Image: “Transitional cell carcinoma of the bladder. The white in the bladder is contrast.” by James Heilman, MD. Licence:CC BY-SA 4.0

Urethra

As the anatomy of the male and female urogenital wing shows some significant differences, the structure of the urethras decisively mirrors them. Therefore, the male and female urethras are examined separately.

Urethra feminina

The female urethra is clearly shorter than the male variant with an average length of 3-5 cm. Because of the significantly shorter length, infections arise more easily compared to men what makes women prone to inflammations of the bladder.

female-urethra

Image: “The urethra transports urine from the bladder to the outside of the body. This image shows (a) a female urethra ” by Phil Schatz. Licence:CC BY 4.0

Course of the Urethra feminine

Starting at the Ostium urethrae internum, the female urethra passes between the symphysis and the vagina to the Vestibulum vagnia. At this point, it leads at the back of the Glans clitoris in the Ostium urethrae externum.

Two parts of the female urethra are distinguished:

  • Pars intramuralis (urinary bladder wall)
  • Pars cavernosa

Microscopic anatomy of the Urethra feminine

The urethra consists from a histological perspective of the following layers, starting in the inside:

  • Tunica mucosa:Urothelion, merging into a multirow columnar epithelium and finally in a multi-layered uncornified squamous epithelium. The lumen is formed as a slit.
  • Tunica propria:with the vein net and the Glandulae urethrales
  • Tunica muscularis:with the Stratum longitudinale and circulare

The supply of the urethra feminina takes place through the Corpus spongiosum urethrae which designates the plexus located there.

Urethra Masculina

The male urethra has an average length of 20-25 cm. It starts at the Ostium urethrae internum and ends at the end of the Glans penis, the Ostium urethrae externum. Its task is besides the transport of urine the transport of seminal fluid.

male-urethra

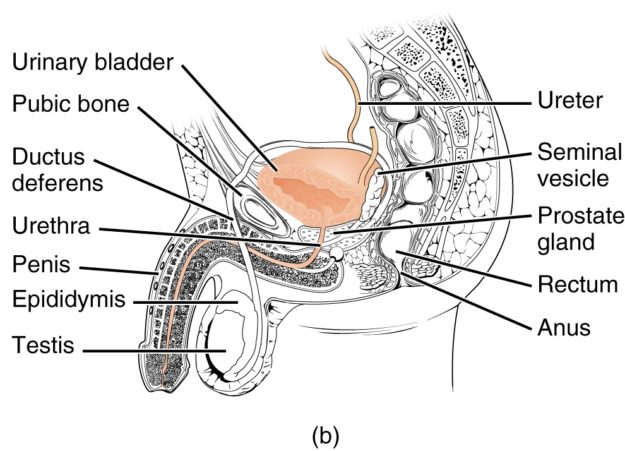

Image: “The urethra transports urine from the bladder to the outside of the body. This image shows (b) a male urethra ” by Phil Schatz. Licence:CC BY 4.0

Anatomy of the Urethra masculina

Macroscopic:

The Urethra masculina divided into 3 parts:

  • Pars prostatica:inside the prostate, about 4 cm long
  • Pars membranosa: runs about 2 cm through the Diaphragma urogenitale (above: M. sphincter urethrae, below Ampulla urethrae)
  • Pars spongiosa:in the Corpus spongiosum, 10 – 20 cm long, extends to the Fossa navicularis

The urethra passes 2 curvatures on its course. On the one hand, it is the Curvatura infrapubica between the Pars membrana and the Pars spongiosa and on the other hand, it is the Curvatura prepubica between the proximal and distal area of the Pars spongiosa.

Additionally, the urethra narrows and widens on three different places:

Narrowings:

  1. Ostium urethrae internum
  2. sphincter urethrae
  3. Ostium urethrae externum

Dilations:

  1. Pars prostatica
  2. Ampulla urethrae
  3. Fossa navicularis

Microscopic:

The urethra is composed of the following layers from the inside to the outside:

  • Tunica mucosa: at first urothelion, from the Pars prostatica merging into a multi-layered and multi-row highly prismatic epithelium and from the Fossa navicularis into a multi-layered, uncornified squamos epithelium
  • Tunica propria: connective tissue with venous plexus
  • Tunica muscularis: Stratum longitudinale und circulare consisting of Stratum longitudinale and circulare

Diseases of the urethra

The uretheritis is triggered by bacterial pathogens or by „classic“ sexually transmitted diseases. A stricture can occur as a complication.

The urethra stricture or urethra narrowing results from sexually transmitted diseases, infections, accidents, catheterism or congenital malformations as well. Urinary retention, painful micturition or incomplete urination (residual urine) can emerge.

Carcinoma of the urethra only occur rarely. Nevertheless, they originate in the bladder neck in 90% of all cases. Another form is for example the Condylomata acuminata (acuminate wart) which occurs due to infections.

urethral-urothelial-cell-carcinoma

Image: “ More details
Micrograph of urethral cancer (urothelial cell carcinoma), a rare problem of the urethra.
” by Nephron. Licence:CC BY-SA 3.0

Micturition

In the case of an adult, healthy person, the micturition usually is a random process. The random closure of the urethra happens through the M. sphincter urethrae which is innervated by the N. pudendus.

The urgency of an adult occurs at a filling of the bladder of about 300-500 ml. With increasing filling, the bladder wall is widened which the stretch receptors of the wall pass onto the parasympathetic centres of the spinal marrow by which the micturition reflex is finally triggered.

The M. detrusor vesicae is contracted in the willing micturition. Meanwhile, the ureter openings close, the blood of the uvula escapes and the Ostium urethrae externum is widened. The M. sphincter urethrae causes its contraction and through the work of the detrusor muscle and, if necessary, through the support of the Heimlich maneuver, the bladder can now be emptied.

This means, that the process of the passing of water is combination of tension (detrusor, Heimlich maneuver) and relaxation (sphincter).

Review Questions

The solutions can be found below the references.

1. On which of the following statements concerning the anatomy of the Vesica urinaria do you not agree?

  1. The urinary bladder is located in the retroperitoneal abdominal area and is limited in the ventral area by the symphysis and the abdominal wall.
  2. The Apex vesicae which is covered by the peritoneum is located in the caudal area of the bladder.
  3. The Vesica urinaria is additionally to the connecting points on the pelvic floor fixed by 3 retaining straps in order to allow for an extension to caudal.
  4. Lissosphincter is a synonym for the smooth urinary bladder sphincter.
  5. The venous return follows the Plexus venosus vesicae.

2. The micturition is a physiological process in which the healthy, adult person willingly empties the urinary bladder. Which of the following possible answers correctly describes the process or parts of the micturition?

  1. The stretch receptors are stimulated at a filling of the bladder of about 300-500 ml through the widening of the bladder wall, so that these electric impulses are transmitted to the sympathetic centres of the brain.
  2. While the M. detrusor vesicae contracts, the openings of the ureters close, the Ostitium urethrae externum is widened and the blood escapes from the uvula.
  3. The M. sphincter urethrae contracts while the detrusor muscle relaxes simultaneously.
  4. The Heimlich maneuver supports the retention of the urine in case of a full bladder.
  5. The N. pudendus innervates the M. sphincter urethrae which closes the ureters.

3. Which of the following statements on the topic of urological diseases was brought into the incorrect context?

  1. The cystitis can be causes by excessive meat and alcohol consumption.
  2. Physical factors as fear or stress can lead to a urinary incontinence.
  3. The stricture of the urethra can be triggered amongst others by sexually transmitted diseases and can be noted because of symptoms as painful and incomplete micturition.
  4. Men are more often than women affected by a carcinoma of the urinary bladder.
  5. A reflux induced by a ureterocele can amongst others cause a hydroureter or relapsing infections
