Overview
Definition
Chiari malformations (CMs) are a group of disorders defined by structural deficits in the brain and spinal cord leading to limited space in the posterior fossa, which forces cerebellar structures to protrude through the foramen magnum.
Classification
- Type I: tonsillar herniation > 5 mm inferior to plane of foramen magnum
- Abnormally shaped cerebellar tonsils
- No associated brainstem herniation or supratentorial anomalies
- Associated hydrocephalus and hydrosyringomyelia common
- Type II: herniation of cerebellar vermis, brainstem, and 4th ventricle into foramen magnum
- Associated with myelomeningocele and multiple brain anomalies
- Associated hydrocephalus and syringomyelia are very common.
- Type III: herniation of cerebellum and brainstem compressing spinal cord
- High cervical or occipital encephalocele containing herniated cerebellar and brainstem tissue
- Rare and typically incompatible with life
- Type IV: incomplete or underdeveloped cerebellum with exposed skull and spinal cord
- Hypoplasia or aplasia of cerebellum and tentorium
- Rare and always incompatible with life
Chiari type I and II
Chiari malformations are characterized by and underdeveloped posterior cranial fossa, with subsequent protrusion of neural structures through the foramen magnum. Type 1 is characterized by herniation of the cerebellar tonsils only, while type 2 involves more structures.
Chiari II malformation showing the points of potential obstruction that yield different subtypes of hydrocephalus
Image: “Chiari2” by Rekate HL. License: CC BY 2.0
Magnetic resonance imaging (MRI) findings suggestive of Arnold–Chiari II malformation
Image: “Sagittal T2W whole spine MRI and MRI of the brain” by Department of Radiodiagnosis, All India Institute of Medical Sciences, Ansari Nagar, New Delhi – 110 029, India. License: CC BY 2.0

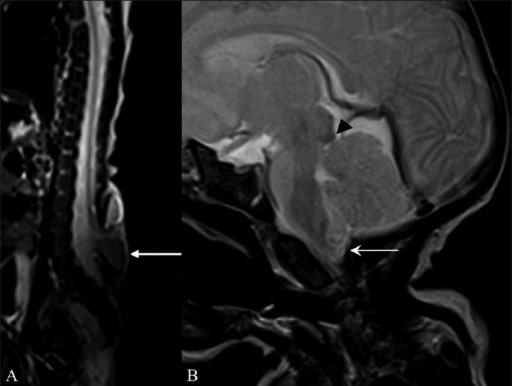

Sagittal T2W whole-spine MRI (A) shows a meningomyelocele (arrow) opposite the L5 and S1 vertebrae. Sagittal T2W MRI of the brain (B) shows a small posterior cranial fossa, with herniation of the cerebellar vermis and tonsils (arrow) through the foramen magnum with tectal beaking (arrowhead).
Epidemiology
Incidence:
- Type I:
- Most common form
- 1 in 1,000–5,000 live births
- Slight female predominance
- Type II:
- Approximately 1 in 2,000 live births
- Decreased incidence with prenatal folate supplementation
- No gender predominance
- Always associated with myelomeningocele
- Type III:
- Rarest form
- Makes up 1%–4.5% of all CMs
Associated conditions:
- Pierre Robin sequence
- Noonan syndrome
- Neurofibromatosis type 1
Etiology and Pathophysiology
Etiology
- Mechanism for herniation
- Formation of small posterior fossa ➝ limited growth of cerebellum and nearby structures
- Growing structures herniate through foramen magnum or vermis.
- Multiple proposed causes:
- Genetics:
- Abnormal segmentation of hindbrain
- Causes abnormal embryonic development of bony and nervous tissues
- Restricted growth of posterior fossa causes compression of neural tissues.
- Progressive hydrocephalus pushes structures downward.
- Genetics:
Pathophysiology
Neurologic symptoms are caused by:
- Compression of central nervous system (CNS; cerebellum, brainstem) against foramen magnum and spinal canal
- Formation of cavitations in spinal cord (syrinx or syringomyelia) due to backup of CSF outflow
Syrinx seen with Chiari malformation
Cavities filled with cerebrospinal fluid (CSF) are commonly seen with CMs. They cause symptomatology commonly associated with the malformation by putting pressure on the surrounding neural tissue.
Clinical Presentation
Type I
Symptoms:
- Asymptomatic in some cases
- Headache:
- Most common symptom (60%–70%)
- Usually occipital and upper cervical
- Occipital headache worse on Valsalva maneuver
- Ataxia and nystagmus (due to compression of cerebellum)
- Compression of cranial nerves can lead to:
- Hoarseness
- Vocal cord paralysis
- Tongue asymmetry
- Central sleep apnea
Physical signs:
- Syringomyelia and central cord syndrome:
- Develops at level of C8–T1
- “Cape-shaped” area of pain and temperature sensation loss due to spinothalamic tract involvement
- Flaccid paralysis and muscle atrophy due to lower motor neuron involvement
- Scoliosis: due to asymmetric development of vertebral columns
Type II
Symptoms:
- Signs of brainstem dysfunction (e.g., ataxia, urinary incontinence)
- Swallowing and feeding difficulties
- Stridor/difficulty in breathing/apnea
- Weak cry
- Nystagmus
- Occipital headaches
Physical signs:
- Myelomeningocele: protrusion of CNS and meninges
- Commonly lumbosacral or thoracic
- Usually prenatally diagnosed
- Hydrocephalus (< 10%):
- Tense/bulging fontanelles
- Increased head circumference > 98th percentile
- Nuchal rigidity and neck tenderness
- Cognitive deterioration
- Imbalance and gait disturbances
- Urinary incontinence
Type III
There is high infant mortality with this type.
Symptoms:
- Severe neurological, developmental, and cranial nerve defects
- Seizures
- Respiratory insufficiency
- Upper and lower motor neuron paralysis
Physical signs:
- Encephalocele: protruding defect that contains part of cerebellum and higher structures
- Spastic or flaccid paralysis
Type IV
- CNS is undeveloped.
- Infants die shortly after birth.
Diagnosis
Work-up
- Rule out other causes of tonsillar herniation (e.g., intracranial mass lesion, hydrocephalus).
- Antenatal:
- Obstetric ultrasounds looking for congenital abnormalities in 18th week of gestation (absent vermis)
- Amniocentesis and karyotyping
- Postnatal:
- Ultrasound of head preferred in neonates
- MRI scan preferred in older children and adults
Diagnosis
- Clinical findings with diagnostic imaging to confirm
- Can be done prenatally
Magnetic resonace imaging scan showing a type I CM. Notice the tonsillar herniation.
Image: “Sagittal MRI scan of brain of patient with Chiari malformation” by Raymond F Sekula Jr et al. License: CC BY 2.0Prognosis
- Favorable prognosis with normal life expected after intervention
- Chiari III malformation has the poorest prognosis.
Management and Complications
Surgical therapy
- Decompression of cervicomedullary junction → restoring normal CSF dynamics
- Options:
- Posterior fossa craniectomy
- Electrocautery of cerebellum via high-frequency electric currents
- Spinal laminectomy to remove pathological bony roof of spinal canal
Conservative management
- Analgesics and muscle relaxants for headaches and neck pains
- Occasional use of soft neck collar
- Special education needed in event of delayed developmental milestones
Complications
- Hydrocephalus: accumulation of CSF within cranial cavity; CM is obstructive, or non-communicating, cause of hydrocephalus
- Pseudomeningocele formation and CSF leakage
- Meningitis and wound infection post-surgery
- Neurovascular injury during surgery
- Cerebellar ptosis in large occipital craniectomy
Differential Diagnosis
- Hydrocephalus: potentially life-threatening condition caused by excess accumulation of CSF within the ventricular system. Clinical presentation is nonspecific and includes headache, behavioral changes, developmental delays, or nausea and vomiting. Diagnosis is confirmed with neuroimaging (ultrasound, head CT, or MRI) showing ventriculomegaly. Treatment is placement of CSF shunt.
- Meningitis: inflammation of leptomeninges, usually due to infectious agent. Patients will present with headache, fever, and a stiff neck. Diagnosis is suspected by clinical presentation and confirmed by lumbar puncture. Treatment is aimed at the causative infection.
- Neural tube disorders: disorders caused by failure of the neural tube to close properly during embryological development. Symptoms range from asymptomatic to very severe malformations of spine and brain. Etiologies are multifactorial, ranging from maternal nutrition to genetic determinants. Prenatal diagnosis is by ultrasound and maternal α-fetoprotein level. Management is mainly surgical.
