Vesicoureteral reflux (VUR) is the retrograde flow of urine from the urinary bladder to the ureter and the kidney. It can be asymptomatic and resolve itself, or be associated with urinary tract infections (UTI), leading to pyelonephritis and nephropathy, which may lead to the complications of renal scarring, renal insufficiency, and hypertension. Treatment is guided by the grade of reflux and the age of the patient. Prognosis is usually good. In this article, etiology, pathophysiology, symptoms, diagnosis, differential diagnosis, and treatment of pediatric vesicoureteral reflux are described.

Are you more of a visual learner? Check out our online video lectures and start your pediatric nephrology and urology course now for free!

Image: “Grades 1 to 5 Vesico-ureteric reflux shown on right of each diagram progressing from left to right. A normal kidney is shown on the left of each diagram.” By ColnKurtz. License: CC BY-SA 4.0

Epidemiology of Pediatric Vesicoureteral Reflux

VUR affects 1—2% children; however, the exact percentage is unknown because many children remain asymptomatic and the disease resolves by itself. Children with recurrent UTIs have a much higher percentage of VUR (15—70%, depending on age).

VUR is usually congenital and is often familial, but it can also be secondary to various disorders of the urinary bladder. The risk of VUR is 25—33% if a sibling has VUR and 66% if a parent has VUR. Children with genetically linked VUR tend to have more serious reflux with scarring.

Etiology of Pediatric Vesicoureteral Reflux

VUR can be primary (most common) or secondary. Primary VUR indicates congenital incompetence of the ureterovesical junction (UVJ) valve. VUR can be secondary to various conditions of the bladder, such as cystitis (bacterial infection, foreign bodies, vesical calculi, etc.); increased intravesical pressure (neuropathic bladder, non-neuropathic bladder dysfunction, or bladder outlet obstruction); or surgical procedures involving the ureteropelvic junction (UVJ) obstruction.

Other causes of primary VUR include ureteral duplication, ureterocele with duplication, ureteral ectopia, and paraurethral diverticula.

Pathophysiology of Pediatric Vesicoureteral Reflux

Normally, ureter enters the urinary bladder through the muscular hiatus of detrusor, passes through a submucosal tunnel, and opens into the bladder lumen (the opening is called the ureteral orifice). During micturition, the bladder and the surrounding muscles contract which compresses the intravesical ureter, thereby preventing any reflux of urine. However, for some reason, if the valve-like mechanism at the ureteral orifice is incompetent or deficient or if the submucosal tunnel is not long enough (ratio of tunnel length to ureteral diameter < 5:1), reflux of the urine ensues.

It is unclear what exactly causes renal damage (leading to the complication of scarring) in patients with VUR. It may be the reflux alone (i.e., sterile reflux), but there’s evidence for implicating ascending infection and pyelonephritis. Scarring may sometimes result from just a single episode of pyelonephritis, although the reason for such scarring is unclear and could be due to low superoxide dismutase levels in kidneys of the children. There is certainly a correlation between the frequency of UTIs and the development and severity of VUR.

Often, scarring is concentrated at the renal poles, where most backflow of urine into the collecting ducts (known as intrarenal reflux) occurs. Intrarenal reflux facilitates the transport of bacteria to the renal tubes. Pyelonephritis is an inflammatory state in which mediators of inflammation, such as superoxide, are released and cause tissue ischemia and fibrosis.

Continued renal damage/scarring may lead to reduced renal sufficiency/renal failure and high blood pressure. This makes it important to treat kidneys with scarring somewhat more aggressively.

Symptoms of Pediatric Vesicoureteral Reflux

VUR may not be symptomatic in itself, but it predisposes the patient to urinary tract infections (UTIs) as bacteria can be transported to the upper urinary tract from the bladder. The resulting pyelonephritis may even lead to reflux nephropathy. Children often therefore present with signs and symptoms of UTI (fever, vomiting, diarrhea, anorexia, lethargy, abdominal pain, etc.).

Children with a recurrent UTI may have a failure to thrive. Pyelonephritis manifests as abdominal pain or discomfort and the typical sign of flank pain with tenderness may be absent in the pediatric population. Reflux nephropathy, especially in advanced stages, can present with headaches, signs, and symptoms of congestive heart failure, and/or signs and symptoms of uremia due to renal failure.

Some children, however, may have hydronephrosis (often detected prenatally), without any overt clinical features.

VUR may be associated with other developmental anomalies; for example, renal agenesis, multicystic dysplastic kidney, ureteropelvic junction obstruction, anorectal malformations, etc.

Diagnosis of Pediatric Vesicoureteral Reflux


UTI is diagnosed by urinalysis and culture. A urine sample can be obtained via suprapubic aspiration (ideal but rarely practiced), catheterization (for younger children), or mid-stream catch (for older toilet-trained children). In 2011, the American Academy of Pediatrics specified that a diagnosis of UTI should be established using both a urinalysis (showing pyuria) and a culture (growing more than 50,000 CFU/mL).

Renal function tests may be performed to obtain a baseline value, which can help in the monitoring during treatment.


Because clinical signs and symptoms are non-specific, imaging is the mainstay of the diagnosis of VUR.

Important: Although ultrasonography of the urinary tract is helpful in the detection of a dilated ureter, it may not detect early grades of VUR; hence, contrast voiding cystourethrography and radionuclide cystogram are best techniques for imaging the lower and upper urinary tract, respectively. VUR that occurs during bladder filling is called “low-pressure VUR”, while VUR that occurs during voiding of the bladder is called “high-pressure VUR”.

Ideally, all children with febrile UTI should undergo imaging for VUR.

Image: “VCUG demonstrating bilateral Grade II (non-dilating) vesicoureteral reflux.” By RadsWiki. License: CC BY-SA 3.0

The severity of VUR is graded based on the urinary tract’s appearance on a contrast voiding cystourethrogram, as per the International Reflux Study Classification. The grades are as follows:

Grade* Description Rate of self-resolution
I Reflux into a non-dilated ureter. 82%
II Reflux into the upper collecting system without dilation. 80%
III Reflux into dilated ureter and/or blunting of calyceal fornices. 46%
IV Reflux into a grossly dilated ureter. 30%
V Massive reflux, with significant ureteral dilation and tortuosity and loss of the papillary impression. 12%

*High-yield information for USMLE

Note: Higher grades indicate a higher chance of renal injury.

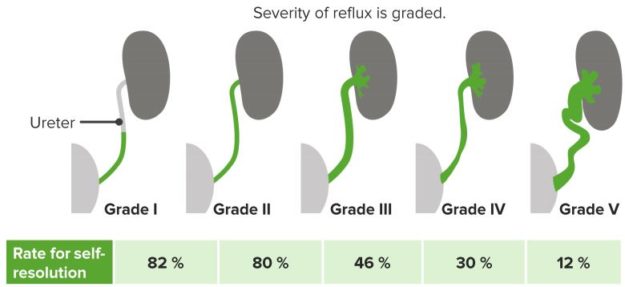

Grades I–V of VUR:


“Vesicoureteral-Reflux” Image created by Lecturio

Indirect cystography, which includes imaging of the lower urinary tract after injection of an intravenous radiopharmacological substance, can detect 75% of VUR and avoids the need for catheterization.

After confirmation of the diagnosis, the monitoring of the child’s height, weight and blood pressure is necessary. If renal scarring is detected, serum creatinine should also be measured.

Differential Diagnoses of Pediatric Vesicoureteral Reflux

  • Antenatal hydronephrosis
  • Myelodysplasia and neurogenic bladder dysfunction
  • Ureteropelvic junction obstruction
  • Other causes of recurrent urinary tract infection
  • Posterior urethral valves
  • Ureterovesical obstruction
  • Urethral anomalies and urethral prolapse
  • Voiding dysfunction

Treatment of Pediatric Vesicoureteral Reflux

Treatment of VUR in children can be medical or surgical, and the choice varies from case to case. VUR usually resolves over time, so sometimes observation with or without antimicrobial cover is enough. In some cases, however, renal injury or other complications may occur due to VUR, and surgical correction of VUR (also known as antireflux surgery) is performed to avoid them.

Medical treatment

Observation includes behavioral modification – ensuring timed/regular urine outputs and bowel movements, increased intake of fluids, monitoring for UTIs and prompt treatment should it be suspected, etc. Antibiotic prophylaxis (amoxicillin in infants less than 8 weeks, trimethoprim-sulfamethoxazole, nitrofurantoin, penicillin in older children) is administered to some children, particularly those with grade III or IV reflux. Antibiotics are supposed to decrease reflux-associated UTI and decrease the risk of development of new renal scars. Typically, one-fourth of the therapeutic dose is administered as prophylaxis.

Surgical treatment

Open, laparoscopic, and robot-assisted laparoscopic VUR correction involves adjustment of the abnormal UVJ, primarily aiming to achieve the intramural ureter length: ureteral diameter ratio of 5:1. In cases of megaureter, the diameter of the ureter must also be adjusted. The success rate of the procedure is over 95%, and discharge is possible within 1–2 days. For Grade V VUR, the success rate is relatively lower – 80%.

Endoscopic VUR correction involves a suburethral injection of a biodegradable material, dextranomer microspheres suspended in hyaluronic acid (Deflux), just below the ureteral orifice. (Other bulking agents include polytetrafluoroethylene and polyacrylate polyalcohol copolymer, but their use is limited at present, especially in the US.) The injection creates an artificial flap and provides compensatory artificial compression of the ureter.

Performed under general anesthesia, endoscopic VUR repair is a quick outpatient procedure, with almost zero recovery time. Success rates are relatively low (70—80%), and repeat injections might be required in some cases.

In 2012, the American Urological Association released treatment guidelines for pediatric VUR. The summary of these guidelines are as follows [Moradi & Diamond]:

Children < 1 year of age without renal scarring at diagnosis: For all grades, start with observation and antibiotic prophylaxis; continue if no complications.

If the reflux is persistent:

  • Grades I—II: Continued antibiotic prophylaxis or periodic cystography or surgery
  • Grades III—V: Surgery

Children < 1 year of age with renal scarring at diagnosis: For grades I—IV, start with observation and antibiotic prophylaxis; continue if no complications. For grade V, surgical correction as the initial step is an alternative.

If the reflux is persistent:

  • Grades I—II: Continued antibiotic prophylaxis or periodic cystography or surgery
  • Grades III—V: Surgery

Children > 1 year of age without renal scarring at diagnosis: For grades I—IV, start with observation and antibiotic prophylaxis; continue if no complications. For grade V, surgical correction as the initial step is an alternative.

If the reflux is persistent:

  • Grades I–II: Continued antibiotic prophylaxis or periodic cystography or surgery
  • Grades III–V: Surgery

Children > 1 year of age with renal scarring at diagnosis: For grades I—II, start with observation and antibiotic prophylaxis; continue if no complications. For grades III–IV, surgical correction as the initial step is an alternative. For grade V, surgery is preferred.

If the reflux is persistent:

  • Grades I—II: Continued antibiotic prophylaxis or periodic cystography or surgery
  • Grades III—IV: Surgery

Complications of Pediatric Vesicoureteral Reflux

Renal scarring and renal nephropathy, resulting in chronic hypertension.

Prognosis of Pediatric Vesicoureteral Reflux

With the availability of modern antibiotics and supportive care, the prognosis of primary VUR, especially of lower grades, is excellent. Grade I and II VUR are most likely to undergo spontaneous resolution. Grade III unilateral VUR, if diagnosed at a young age, is also likely to undergo spontaneous resolution. The mean age of spontaneous resolution of VUR is 6 years. Spontaneous resolution is unlikely in grade IV and V VUR. Prognosis of secondary VUR depends on its etiology.

Review Questions

The correct answers can be found below the references.

1. A voiding cystourethrogram study of a newborn child demonstrated reflux into a grossly dilated ureter along with some blunting of calyceal fornices. What is the grade of VUR in this patient?

  1. Grade I
  2. Grade II
  3. Grade III
  4. Grade IV
  5. Grade V

2. A 2-year-old presented with febrile urinary tract infection. Voiding cystourethrogram study reveals massive reflux, there is major ureteral dilation, and the papillary impressions are lost. What is the preferred treatment?

  1. Antibiotic prophylaxis
  2. Wait and watch as the disease may resolve itself
  3. Permanent vesicostomy
  4. Piecemeal resection of the prostate
  5. Ureteral reimplantation into the bladder

3. Which of the following grades of VUR has the highest rate of self-resolution?

  1. Grade I
  2. Grade II
  3. Grade III
  4. Grade IV
  5. Grade V
