What follows is an overview for a series of nuclear tests that can be used to diagnose pulmonary, vascular, and cardiac pathology. It will focus on nuclear scans and not on X-rays, CT and MRI. While not high yield for the USMLE, it is good to familiarize tourself with these modalities as you may get a random question on your actual USMLE test (although rare). You are likely to find these tests while working in hospital wards.
Are you more of a visual learner? Check out our online video lectures and start your pathology course now for free!

ECAT Exact HR PET Scanner

Image: “A typical PET facility equipped with an ECAT Exact HR+ PET scanner. PET scanners such as this are steadily being replaced by systems that combine both PET and CT scanners into a single PET/CT imaging device.” by Jens Maus (http://jens-maus.de/) – Own work. License: Public Domain


Radiographic techniques used in the diagnosis of pulmonary embolisms (PE) and myocardial infarctions (MI) are not limited to X-ray, CT, and MRI. In PEs, a ventilation perfusion scan can be used for diagnosis.

MI and post-MI states can be evaluated using SPECT, PET, Perfusion and MUGA scans. These scans rely on radio-labeled tracers to emit energy that can be viewed using a gamma camera to generate a very accurate picture of organ health.

Lung Scans

Lung scans are oftenly used to diagnose PEs as they require serious medical intervention. PEs result in a change in the ventilation (V) and perfusion (Q) of the lung tissue. PEs are caused most often by thrombi that originate in the lower extremities with the most common sites being the deep veins that travel in the hip and pelvis.

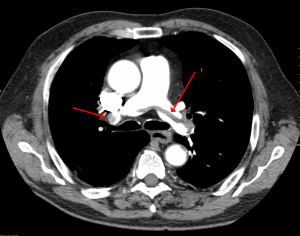

pulmonary embolism

Image: “A large pulmonary embolism at the bifurcation of the pulmonary artery (saddle embolism).” by James Heilman, MD. License: CC BY-SA 3.0

While thrombi are the most likely cause, there are several other sources that can cause a PE that include fat, air, bacteria, amniotic fluid, and tumor. The major risk factors for developing a PE include CHF, obesity, post surgical, and immobility such as being on a flight.

Signs and symptoms of a PE are tachypnea, chest pain, and rapid onset dyspnea. The most common symptom is dyspnea. Other relevant findings are elevated D-dimer on labs and S1Q3T3 pattern on ECG.

Rapidly diagnosis of a PE can be done using several modalities with the most sensitive and reliable one being the CT pulmonary angiogram (CTPA). For patients who have contraindications to a CTPA, a VQ scan is recommended. Contraindications include having renal impairment that does not allow for contrast to be used. Another common reason is due to pregnancy where radiation is a teratogen.

For USMLE it is important to know that while D-dimers are seen during a PE they are only sensitive and not specific, meaning that while they occur with PEs they also occur with many other conditions. If you suspect a PE but the patient does not have an elevated D-dimer then it is very unlikely that the patient is experiencing a PE and another pathology should be considered. Other causes of an elevated D-dimer can include sepsis, stroke, and renal disease.

Ventilation Perfusion Scans

Ventilation perfusion scans (VQ scans) rely on scintigrams, a technique where a radioactive isotope with Technetium-99 DTPA is inhaled after which multiple images are taken using a Gamma camera. This is then followed by an injection of Technetium-99 MAA which lodges in arterioles of the lung after which Gamma camera images are taken.

Gamma camera scan of ventilation and perfusion of lungs

Image: “Posterior views from ventilation (left) and perfusion (right) scans of a patient’s lungs. Generated using OsiriX.” by Kieran Maher – http://en.wikibooks.org/wiki/Image:VentPerfPost.jpg. License: Copyrighted free use

Both image sets are compared and if there is a PE there will be ventilation but no perfusion. Oftentimes, there are multiple perfusion defects. V/Q scans are done using a chest X-ray to rule out other pathologies such as atelectasis. Due to the V/Q scan protocol and poorer sensitivity and specificity a CTPA is a much better choice to rapidly diagnose a PE.


Cardiography can be done using nuclear tests to diagnose cardiac pathology and usually focuses on two areas: ischemia/infarct or with heart failure.

Cardiac ischemia in a chronic form can present as angina which results from luminal narrowing. If the stenosis continues to grow or if it breaks off and occludes a distal part of the vessel tissues, ischemia will rapidly occur resulting in MI. The most common coronary arteries to occlude are the left anterior descending, right coronary, and left circumflex.

Common symptoms you will see in a patient include retrosternal pain that can radiate to the left arm or up the neck to the jaw, shortness of breath, diaphoresis, nausea, and vomiting.

ECG is the best way to diagnose a MI with changes normally seen in the ST region for a transmural infarct. On laboratory exam, Troponin I is the most specific marker. Immediate treatment in the ED includes oxygen, aspirin, morphine and sublingual nitroglycerin.

MI complications can occur during or post infarct and can have serious morbidity and mortality. Cardiac arrhythmias are very common and you should remember that only ventricular tachycardia and ventricular fibrillation are shockable rhythms. Cardiogenic shock where the heart cannot pump enough blood can occur and lead to death rapidly.

Depending on tissue death, free wall rupture can occur leading to cardiac tamponade. Also, papillary muscles can rupture which lead to valve regurgitation with the most common being the mitral valve. Finally, several weeks after the MI, Dressler’s syndrome can occur which is an autoimmune reaction that leads to fibrinous pericarditis.

For the USMLE, it is important to know the time course for changes on the microscopic level in cardiac tissue related to ischemia. Cardiac tissue undergoes coagulative necrosis which results in maintenance of cell architecture for a few days.

  • Initially, within the first four hours there will be few visible changes to the cardiac tissue.
  • Between four to twelves hours, edema and wavy fibres can be seen.
  • Twelve to twenty-four hours will see the arrival of neutrophils to primary infarct site.
  • One to three days shows surrounding tissue with inflammation and neutrophils.
  • Up to two weeks later will show granulated tissue with macrophages.
  • After two weeks the infarction site will show scar tissue formation.

Heart failure is a condition that can be caused by cardiac ischemia, alcohol abuse, vitamin deficiencies, and drug use. It is usually broken down into two distinct categories of left and right sided heart failure.

  • Left sided heart failure will present with symptoms of pulmonary edema, orthopnea, paroxysmal nocturnal dyspnea, and patients can cough up pink frothy sputum.
  • Right sided heart failure will present with symptoms that include jugular venous distension, peripheral edema, hepatomegaly. Diagnostics tests usually begin with a chest x-ray and echocardiogram. For an even more accurate picture, nuclear tests can be performed which will allow for a better representation of myocyte health, ventricular function, and ejection fraction. Ejection fraction is measured as the stroke volume divided by the end diastolic volume. The normal range is somewhere around ~60% and the classification for heart failure is when it reaches ~40% or less.

Ventricular Function Studies

SPECT Slice of Heart

Image: “A SPECT slice of a patient’s heart.” by Kieran Maher – http://en.wikibooks.org/wiki/Image:SPECT-Heart.jpg. License: Copyrighted free use.

Ventricular function studies are most commonly done as single photon emission computed tomography (SPECT) test. SPECT tests show signs of CAD and ventricular function. The test uses Technetium-99m to visualize the heart in states of rest and during activity. Viewing the function of the heart during activity can be done with the patient walking on a treadmill or in some cases by pharmacologically induction. Adenosine is often given to facilitate this.

Positron Emission Tomography

Positron emission tomography (PET scan) is an imaging technique that utilizes radiopharmaceuticals. The radiopharmaceuticals are usually radio-labelled sugars that can be injected into the bloodstream that then build up in certain tissues and can be used to detect cancer, neurologic disease and activity, and cardiac function.

In conditions such as hibernating myocardium, a PET scan can be used to visualize cardiac activity. Hibernating myocardium occurs after cardiac ischemia where loss of blood flow results in a decreased contractile ability of myocardium but not of viability. A PET scan can be used to visualize if the tissue is still viable as the radio-isotopes would still be taken up by the myocardial tissue.

Resting Myocardial Perfusion Scan

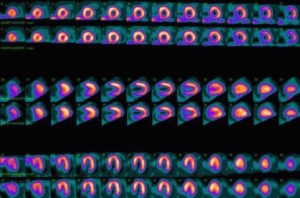

Nuclear medicine myocardial perfusion scan of normal heart muscle

Image: “Nuclear medicine myocardial perfusion scan showing normal heart muscle with no defects.” by Sincefalastrum – Own work. License: GFDL

Resting myocardial perfusion scan studies are often referred to as myocardial perfusion imaging. This is done to see perfusion of myocardial tissue in the heart and improve on the accuracy of cardiac stress test results.

The test uses a radioactive agent such as Thallium to readily uptake into cardiac myocytes. A photon camera is used to take the images of the heart. Areas of reduced signal are likely due to ischemia or a past infarct. If done with exercise, this can distinguish areas that are at risk of becoming ischemic.

Multigated Acquisition Scan (MUGA)

Multigated acquisition scan (MUGA), also known as radionuclide angiography, utilizes the patient’s own red blood cells that are tagged with technetium-99 pertechnetate.

This labeling of the red blood cells allows for visualization of the function of both the left and right ventricles. This test is useful in the diagnosis of heart failure. Like in many of the other tests, a gamma camera will record and generate a picture of cardiac function. This technique can give a very accurate EF.
