15 % of all injuries of the elbow joint lead to occupational disability with premature pension. Thus, it is understandable that the health system has great interest to limit the consequences of such injuries, in case previous prevention measures have failed. Hence, there is need for physicians and therapists who invariably master the (functional) anatomy and pathology of the elbow joint, so patients with elbow lesions would be treated appropriately. This article is supposed to help medical students to learn the routine of dealing with the elbow joint – both for the exams in university and for later professional practice.

Are you more of a visual learner? Check out our online video lectures and start your anatomy course now for free!

Elbow Joint

Image: “Medial sagittal section through the right elbow” by Phil Schatz. License: CC BY 4.0


Elbow Joint: Surface Anatomy

The elbow joint – medically referred to as articulatio cubiti – actually consists of three joints, which form together a functional unit. All three osseous components are covered by a common joint capsule. The three joints are:

  • Humeroulnar joint (humerus + ulna)
  • Humeroradial joint (humerus + radius)
  • Proximal radioulnar joint (radius + ulna)
Note: The distal radioulnar joint is part of the wrist and not of the elbow joint.

The elbow joint is capable of extension and flexion, as well as pronation and supination. Adduction and abduction cannot actively be performed and are rather considered as gapping via passive structures if the elbow is flexed or extended. The greatest degree of motion is observed at flexion, with extension being the returning movement. Due to the osseous inhibition via the olecranon, extension movements exceeding 0 degrees are rare and are mostly seen as hypermobility.

Osteology: Humeroulnar Joint (Humerus + Ulna)

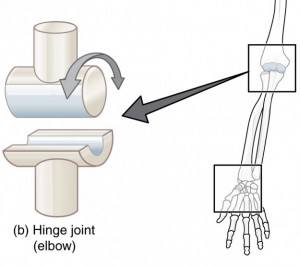

hinge joint

Image: “Types of synovial joints (detail)” by Phil Schatz. License: CC-BY 4.0

Humeroulnar joint: Osseous structures and articulating surfaces of the humerus

The osseous structures of relevance for the elbow joint are located on the distal extremity of the upper arm bone. The following structures are discussed:

  • Trochlea of the humerus
  • Coronoid fossa
  • Medial epicondyle of the humerus
  • Supracondylar ridge
  • Groove for the ulnar nerve
  • Olecranon fossa

The following image illustrates this composition.

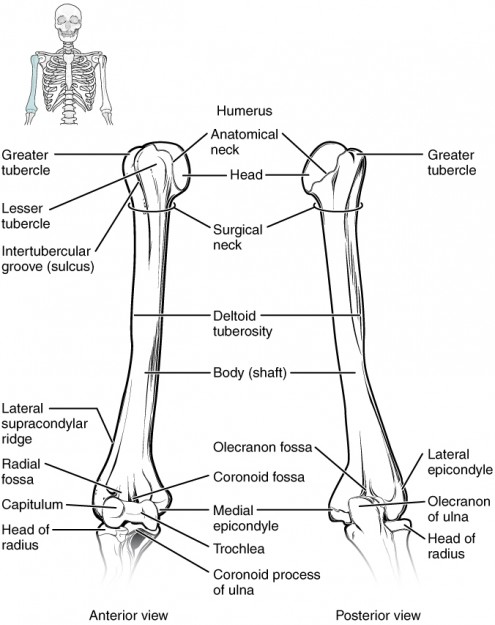

Humerus and Elbow

Image: “Humerus and elbow” by Phil Schatz. License: CC-BY 4.0

Trochlea of the humerus
The trochlea of the humerus is the osseous connection of the distal humerus to the ulna. Its medial diameter is greater than its lateral one, which leads to inward rotation of the ulna at the extension of the elbow joint. The trochlea features a groove for movements of the ulna. The ulna itself has an influence on the final position of elbow flexion, e.g. at proximal-lateral courses, the lower arm has a lateral orientation. If the course should be proximal-medial, the lower arm’s final position is medial, respectively. The kind of the course is different from person to person and is not considered pathological, as long as flexion movement is not conspicuously impaired or painful. In the anterior to posterior orientation, the trochlea is convexly formed; it is flat in the medial-lateral orientation.

Coronoid fossa
The coronoid fossa is situated proximally of the trochlea of the humerus and forms the proximal articulating partner of the humerus to the distal ulna. Its task is to articulate with the coronoid process of the ulna at the flexion of the elbow joint.

Medial epicondyle of the humerus
The medial epicondyle of the humerus is an osseous medial protrusion of the distal humerus. Amongst others, it serves as bony origin for the hand flexors.

Supracondylar ridge
The supracondylar ridge is a crest-like edge, which originates from the medial epicondyle of the humerus and runs proximally. It serves as the origin or insertion of the brachial muscle, the pronator teres muscle, the medial belly of the triceps brachii muscle, and the medial brachial intermuscular septum.

Groove for the ulnar nerve
This osseous groove lies dorsally of the medial epicondyle of the humerus and serves the distally running ulnar nerve as a guiding structure.

Olecranon fossa
The olecranon fossa is located proximally and dorsally to the trochlea of the humerus. It is filled with fatty tissue and forms the proximal articulating partner of the humerus to the distal ulna. Its task is to articulate with the tip of the olecranon of the ulna at the extension of the elbow joint.

Humeroulnar joint: Osseous structures and articulating surfaces of the ulna

The osseous structures of relevance for the elbow joint are situated on the proximal extremity of the ulna. The following structures are discussed:

  • Trochlear notch
  • Olecranon
  • Coronoid process
  • Ulnar tuberosity
  • Supinator crest

The following image shows the position of the mentioned structures:

Ulna and Radius

Image: “Ulna and Radius” by Phil Schatz. License: CC-BY 4.0

Trochlear notch
The articulating surface of the ulna to the humerus is known as the trochlear notch. It faces ventrally and surrounds the trochlea like pliers, which can explain the hinge-like movement of flexion and extension of the elbow joint.

Olecranon process
The trochlear notch dorsally ends with the olecranon. This osseous protrusion is prominent and well palpable. The olecranon process of the ulna fits into the olecranon groove of the humerus when the arm is fully extended. It serves as the insertion for the triceps brachii muscle and as the origin of the ulnar belly of the flexor carpi ulnaris muscle.

Coronoid process
The coronoid process of the ulna – not to be mistaken for the coronoid process of the mandible – is a prominent triangular bone protrusion of the ulna and forms the distal part of the trochlear notch. Its medial part is the origin of the superficial flexor digitorum muscle and the pronator teres muscle.

Ulnar tuberosity
The tuberosity of the ulna, which is the insertion point of the brachial muscle and the origin of the superficial flexor digitorum muscle, is located distally from the coronoid process.

Supinator crest
Dorsally to the trochlear notch, is located the supinator crest, which represents the origin of the supinator muscle.

Humeroulnar joint: Joint capsule

Elbow Joint

Image: “Medial sagittal section through the right elbow” by Phil Schatz. License: CC BY 4.0

The joint capsule surrounds the olecranon fossa of the humerus from the dorsal direction and the coronoid fossa from ventral. However, the medial epicondyle and the groove for the ulnar nerve lie outside of the capsule. Parts of the joint capsule grow together with deep fibers of the medial collateral ligament. On the ulna, the joint capsule inserts at the bone-cartilage border of the trochlear notch and surrounds the radial notch of the ulna from the medial direction. Dorsally, the capsule surrounds the olecranon fossa along with two more connective tissue strands. In its course, it forms small dorsal and ventral recesses. At flexion, the dorsal parts are tense and the ventral capsule parts are tense at extension, respectively.

Humeroulnar joint: Ligaments

Medial view of right elbow joint

Image: “Medial view of right elbow joint” by Phil Schatz. License: CC-BY 4.0

For the humeroulnar joint important are the ulnar collateral ligament and the epicondylar ligament of the olecranon.

Ulnar collateral ligament
This ligament has four fiber strands: anterior part, posterior part, medial part and transverse part. In all joint positions, sections of them are tense and stabilize the humeroulnar joint against valgus stress. The ligament relaxes at extension and pronation.

Epicondylar ligament of the olecranon
This is a splitting-off of the ulnar collateral ligament and has the function to stabilize the ulnar nerve in the sulcus of the ulnar nerve.

Humeroradial Joint (Humerus + Radius)

Humeroradial joint: Osseous structures and articulating surfaces

The following osseous structures of the humerus are relevant for the humeroradial joint.

  • Capitulum
  • Capitulotrochlear groove
  • Radial fossa
  • Lateral epicondyle of the humerus
  • Lateral supracondylar ridge

Capitulum
The capitulum is the lateral circular articular part of the distal humerus that articulates with the head of the radius.

Capitulotrochlear groove
The capitulotrochlear groove separates the capitulum from the trochlea of the humerus. The oblique lunula of the radius moves through this groove at all movements of the elbow joint.

Radial fossa
The radial fossa is situated proximally and ventrally to the capitulum of the humerus. Its task is to articulate with the head of the radius at flexion of the elbow joint.

Lateral epicondyle of the humerus
The lateral epicondyle of the humerus is located laterally to the capitulum of the humerus and serves as the origin for the lateral collateral ligament and for the hand/finger extensors.

Lateral supracondylar ridge
The lateral supracondylar ridge begins at the lateral epicondyle of the humerus and runs proximally. It is the insertion point for the brachioradialis muscle, for the extensor carpi radialis muscle and for the intermuscular septum.

Humeroradial joint: Osseous structures and articulating surfaces of the radius

Radius

Image: “Ulna and radius (detail)” by Phil Schatz. License: CC-BY 4.0

The following osseous structures of the radius are relevant for the humeroradial joint:

  • Fovea articularis radii
  • Oblique lunula of the radius

Fovea articularis radii
The fovea articularis radii is the radial articulating surface for the humerus. It is oval and concave and, thus, functionally defines the humeroulnar joint as a concave joint.

Oblique lunula of the radius
The oblique lunula of the radius is a marginal bulge of the fovea articularis radii. It shifts in the capitulotrochlear groove at all movements of the elbow joint.

Humeroradial joint: Joint capsule

The joint capsule surrounds the radial fossa of the humerus, whereas the lateral epicondyle of the humerus remains outside of the capsule. On the radius, the insertion of the capsule lies distally to the bone-cartilage border of the articulating circumference of the radius. Dorsally and ventrally, the capsule forms several small recesses. The ventral capsule parts are tense at elbow extension, whereas the dorsal parts are respectively tense at flexion.

Humeroradial joint: Ligaments

Lateral view of right elbow joint

Image: “Lateral view of right elbow joint (detail)” by Phil Schatz. License: CC-BY 4.0

Only the radial collateral ligament is relevant for the humeroradial joint.

Radial collateral ligament
The radial collateral ligament splits into two v-shaped parts where one rein runs ventrally and the other dorsally. The task of this ligament is to stabilize the elbow joint against varus stress.

Proximal Radioulnar Joint (Radius + Ulna)

Proximal radioulnar joint: Osseous structures and articulating surfaces of the radius

The most important osseous structure of the proximal radioulnar joint is the head of the radius, the caput radii. Facing the ulna, there is the articulating circumference of the radius, which articulates with the ulnar joint surface and with the annular ligament of the radius. Roughly 2-3 cm distally to the proximal radius edge is located the tuberosity of the radius, the insertion point of the biceps brachii muscle.

Ulna

Image: “Ulna und Radius (detail)” by Phil Schatz. License: CC-BY 4.0

Proximal radioulnar joint: Osseous structures and articulating surfaces of the ulna

On the lateral side of the ulna, there is the radial notch of the ulna which articulates with the radius. From the dorsal edge of the radial notch of the ulna emerges the supinator crest of the ulna emerges which is the origin of the supinator muscle.

Proximal radioulnar joint: Joint capsule

The ulnar part of the joint capsule begins at the radial edge of the trochlear notch and transits into the radial notch of the ulna at the bone-cartilage border. On the radius, the capsule begins below the bone-cartilage border of the circumference and includes the annular ligament of the radius. Distally to the ligament, there is a recess of the joint capsule –  the so-called sacciform recess.

Proximal radioulnar joint: Ligaments

Concerning the proximal radioulnar joint, the annular ligament of the radius and the quadrate ligament should be mentioned.

Annular ligament of the radius
The annular ligament of the radius surrounds the head of the radius but omits the oblique lunula. In the middle position between pronation and supination position, it is tense. It forms an articulating surface for the circumference of the radius and centers the head of the radius towards the ulna.

Quadrate ligament
This ligament is not present in every person. If it is inherent, it is grown together with the joint capsule of the proximal radioulnar joint and, thus, forms a connection between radius and ulna. Furthermore, it can be connected to fibers of the annular ligament of the radius on the ulnar side. Therefore, it can assume the same functions, although rather weakly.

Innervation of the Elbow Joint

The capsule-ligament apparatus of the elbow joint is closely occupied by several receptors and, thus, has great proprioceptive features. Unfortunately, this brings the disadvantage of neuronal deficits to massively impair movement control of the joint.

Nerve Structure

Image: “Nerve Structure” by Phil Schatz. License: CC-BY 4.0

Concerning innervation, one has to distinguish between the dorsal and ventral capsule-ligament apparatus since they are innervated by different nerve fibers.

Innervation of the dorsal capsule-ligament apparatus
The ulnar nerve gives rise to an articular ramus to the dorso-medial elbow joint while the radial nerve supplies the dorso-lateral capsule-ligament apparatus with a joint branch. The cutaneus antebrachii nerve supports the radial nerve at its supply of the dorsal region. Also, subfascial rami out of the muscular rami (anconeus muscle) innervate the joint capsule of the humeroradial joint.

Innervation of the ventral capsule-ligament apparatus
The median nerve supplies the ventro-ulnar region of the elbow joint with a joint rams. Furthermore, the musculocutaneus nerve innervates the ventro-radial joint area with an articular ramus (lateral cutaneus antebrachii muscle).

Functional Anatomy of the Elbow Joint

In this section are discussed the most important aspects of the functional anatomy of the elbow joint. Primarily described are the axis and plane positions, or the angular positions resulting from them, which are essential for movement sequences of the joint.

Retroversion angle of the humerus

The proximal and distal ends of the humerus are twisted against each other. The retroversion angle resulting from this fact develops via the transversal axis of the epicondyles and the line, which connects the center of the major tubercle with the head of the humerus. While this torsion angle is roughly 60 degrees in infants it is ca. 20 degrees in adult human beings.

Distal diaphysis angle

The trochlea and the capitulum of the humerus are ventrally angled from the shaft axis. In an adult person the angle amounts to ca. 45 degrees. Literature does not give information if the angle is smaller or larger in infants.

Note: Due to the retroversion and diaphysis angle, the elbow joint is functionally better aligned in the ventral orientation than in the dorsal one.

Joint angles of the ulna

Together with the shaft axis, the line between the tip of the olecranon and the coronoid process forms the ulnar joint angle. In an adult person, it is roughly 45 degrees. Literature does not give information if the angle is smaller or larger in infants.

Note: This angle position explains the great capability of flexion of the elbow joint.

Clinical Examples Concerning the Elbow Joint

The elbow joint has a great factor of pathogenicity, and thus possible lesion forms are manifold, so this article only covers the clinical pictures that are most frequent in practice.

Humerus fracture

humeral fracture

Image: “An isolated type-IV supracondylar humeral fracture in a 5-year-old boy.” by Openi. License: CC-BY 2.5

This kind of fracture of the upper arm with joint participation primarily occurs at falling on the maximally extended arm. It is divided into supra-, trans-, or intercondylar fractures. Depending on the location and the extent, these injuries have to be reduced and surgically treated. Plate osteosynthesis mostly represents first-line therapy.

Olecranon fracture

In contrast to the humerus fracture, the olecranon fracture mostly occurs at falling on the flexed arm. Besides the simple fracture, complicated forms can develop, at which the olecranon tears off or breaks into several fragments. This injury form is usually treated surgically with a tension band osteosynthesis.

Radial head fracture

The radial head can be fractured at falling on the extended arm. This injury form can occur with or without dislocations or as multiple fragment fracture. While the multiple fragment fracture is treated surgically, the other lesion forms can be treated conservatively.

Babysitter’s elbow (Chassaignac’s paralysis)

This is also called Nursemaid’s elbow or radial head subluxation. Abrupt longitudinal traction on the radius with rotation (as it occurs if parents brutally pull their child on the arm and the child turns away) makes for the radial head to completely or partially translate into the sacciform recess, loosening from the annular radial ligament. This way, the radial head subluxates and the annular radial ligament is painfully clamped. Due to pain and malposition, neither active flexion nor extension is possible and the arm is held in a pronation relieving position. This gives the impression of a neuronal paralysis which is practically not present. As soon as the radial head is professionally repositioned by a physician, the symptoms mostly disappear quickly. The two main methods for reposition are hyperpronation and a combination of supination and flexion.

Video on Movements of the Upper Extremity

Possible Exam Questions on the Elbow Joint

The answers can be found below the references.

1. Which of these statements concerning the elbow joint is correct?

  1. The elbow joint is movable in all axes and planes.
  2. The distal radioulnar ligament is part of the elbow joint.
  3. The nerval capsule-ligament supply occurs via the ulnar nerve, the radial nerve, the posterior cutaneus antebrachii nerve, and the musculocutaneus nerve.
  4. Flexion has the greatest extent of movement in the elbow joint.
  5. 30 % of all elbow injuries result in occupational disability with a premature pension.

2. What is the extent of the retroversion angle of the humerus in adults?

  1. Ca. 10 degrees
  2. Ca. 15 degrees
  3. Ca. 20 degrees
  4. Ca. 25 degrees
  5. Ca. 30 degrees

3. Which relieve position does a patient with Chassaignac’s paralysis show?

  1. Extension
  2. Flexion
  3. Supination
  4. Pronation
  5. He does not show any relieve position since it is a paralysis.
