liver

Image: “Human Liver” by Suseno.


Roles of the Liver

In the adult body, the liver is the central organ of metabolism. Its tasks include production of blood proteins (albumin, coagulation factors), bile, and antigens, storage of vitamins, synthesis of the starting products for hormone production, storage of glycogen from glucose as an energy reserve, decomposition of the red blood cells, production of hormones, and detoxification of the body from endogenous (ammonia) and exogenous (e.g., medications) substances.

The liver acts as an accessory digestive gland and produces bile which aids in breaking down fat.

Gallbladder-Liver-Pancreas Location

Image: Gallbladder-Liver-Pancreas Location. By Blausen, License: CC BY 3.0

All nutrients resorbed from the intestine and accepted into the blood pass through the portal vein (portal circulation) to the liver, where they are either removed or returned to the blood if necessary.

Byproducts that form in the liver can be expelled in 2 ways:

  • Expulsion via the kidney: Water-soluble products (medications, alcohol) are delivered by the liver cells to the liver sinusoids. From there they pass into the bloodstream to the kidney and are then expelled with urine.
  • Expulsion via the gall bladder: As the largest exocrine gland, the liver produces about 600–800 ml of bile per day. Non-water-soluble substances pass through the bile capillaries in the intestine and are expelled with stool.

Shape and Structure of the Liver

Human Liver

Image: Human Liver. By Suseno, License: Public domain

The dark red liver is located in the upper right abdomen, weighs approx. 1.5–2 kg (3.3–4.4 lb) and is soft.

Symptoms: Because of its consistency, in an accident, the liver is prone to rupture, which may be accompanied by intra-abdominal bleeding (blunt abdominal trauma).

Neighboring organs leave characteristic impressions on its surface.

structure of the liver

Image: Structure of the liver. By Lecturio

There are 2 different surfaces of the liver. One is the diaphragmatic surface which faces and is coalesced with the diaphragm, and the other is the visceral surface facing the abdominal organs. Ventrally, the diaphragmatic surface passes into the visceral surface along the inferior margin. Due to its coalescence with the diaphragm, the liver moves during respiration—caudally during inspiration. The non-coalesced surface is covered by the visceral peritoneum, and its position is thus intraperitoneal.

A shell of conjunctive tissue, the fibrous capsule or Glisson’s triad, surrounds the entire organ. It is connected to the peritoneum by subserosa. Septa protruding inward from the shell divide the liver into its 4 morphologically distinct lobes: right lobe (largest lobe), left lobe, quadrate lobe (ventral), and caudate lobe (dorsal).

Furthermore, the division into 8 macroscopically identical segments is of clinical relevance (Counaud classification system). It stems from the arrangement of blood vessels and biliary ducts and allows for a clear demarcation into other segments for the resection of individual segments.

The Couinaud classification system divides the liver into 8 segments, with each of the segments having its own independent vascular inflow, outflow, and biliary drainage. The classification makes use of the vascular supply to determine the separation of each functional unit.

Segments of the liver

Image: Segments of the liver. By Lecturio

The following structures always run together (triad), from the beginning of the macroscopically dominant liver portal (porta hepatis) down to the smallest units of the liver:

  • Arterial vessels (oxygen-rich, hepatic artery proper and branches)
  • Portal venous vessels (nutrient-rich, hepatic portal vein and branches)
  • Biliary ducts (the right and left hepatic ducts and their branches merge into the common hepatic duct)

The efferent hepatic veins run independently from the triad.

Fine Structure of the Liver

The smallest, most sparse conjunctive tissue divides the liver parenchyma into lobes (hepatic lobes). These are polyhedral and are arranged around a central vein. Multiple adjacent lobes form periportal areas at their point of contact, or conjunctive tissue gussets, into which flow the aforementioned incoming vessels and outgoing biliary ducts.

Depending on the consideration of the function of the parenchyma in question, there are 3 different entities: a central vein lobule, portal vein lobule (also periportal/portal lobule), and liver acinus.

Microscopic Anatomy of the Liver

Image: Microscopic Anatomy of the Liver. By Phil Schatz, License: CC BY 4.0

Central vein lobule

In the center of the liver is a central vein, around which trabeculae radiate, arranged by hepatocytes and liver sinusoids. Liver sinusoids are extended spaces between the liver cell trabeculae with a fenestrated endothelium, into which blood flows from the portal vein and the hepatic artery proper toward the central vein. The entire exchange of blood and hepatocytes occurs on a stretch of 0.5 mm. The fenestrated endothelium is separated from the adjacent liver parenchyma by a plasma-filled space (perisinusoidal space or space of Disse).

Portal vein lobule

As the name itself implies, the portal vein lobule is concerned with structures in the periportal region. Central veins form the corners, and the bile passes in the central outlet. Three or more central vein lobules form one portal vein lobule.

Liver acinus

The division into the liver acinus stems from different metabolic zones. The shape of an acinus is rhombic, and 2 periportal areas and 2 central veins form each corner of the rhombus.

Cell Types of the Liver

Liver cells (hepatocytes)

Arranged around the central vein in a stellate pattern, these large cells have many cellular organelles and often have multiple nuclei due to their metabolic activity. Their tasks include the production of bile, the breakdown of hormones, and the regulation of the acid-base balance. They form a one- to a multi-layered epithelium. The basolateral surface facing the space of Disse shows a trimming of microvilli. Opposite this is the apical or biliary cellular pole. Two opposing apical membranes of the hepatocytes border the bile capillaries.

Kupffer cells

These phagocytosing scavenger cells are part of the mononuclear phagocyte system of the immune system and are antigen-presenting macrophages. They may gather, store, and break down cell debris, foreign substances, obsolete erythrocytes, and bacteria from the portal vein blood. They also lie atop the sinus endothelium and their cell bodies bulge into the sinusoidal lumen.

Ito cells (hepatic stellate cells or perisinusoidal cells)

These fat-storing stellate cells are located in the space of Disse and store vitamin A. After increased vitamin A intake, the cells proliferate. Ito cells play an important role in the pathogenesis of liver cirrhosis and are believed to be responsible for the increased collagen production.

Pit cells

These natural killer (NK) cells are liver-specific lymphocytes and stick to endothelial cells.

The Detoxication of Organic Exogenous Substances: Biotransformation

Note: Substances taken in from the environment, and which cannot find immediate use as nutrients, are expelled or metabolized by the organism if possible. The metabolism of such substances is referred to as biotransformation.

Most biotransformation reactions occur in the liver and include enzymatically catalyzed reactions that aim to make endogenous or exogenous substances water-soluble and to expel them. Generally, an inactivation of active or toxic substrates occurs, with the objective of rendering them harmless.

However, there are also substances that are converted into toxic substances by this reaction, and which can then harm the body. The most well-known example of this is benzopyrene, which is contained in the tobacco smoke of cigarettes. It is also found in charcoal-grilled meat. The biotransformation reaction with the cytochrome P450 enzyme results in the ultimately cancerogenic diol epoxide, which reacts with the base guanine in the DNA, thereby resulting in permanent damage to the organism.

Biotransformation encompasses 2 successive reaction types: A phase I reaction (conversion reaction) and a phase II reaction (formation of conjugates). Each process aims at transforming the toxic substances into non-harmful and easily removable compounds.

Phase I reaction

This reaction is also called a conversion or functionalization reaction. Oxidation, reduction, and hydrolysis reactions are attached to the starting compound of functional groups. The monooxygenases involved in the oxidation reactions bind oxygen and transfer 1 of the 2 oxygen atoms to the respective starting substrate.

The second atom is released upon the formation of water. Due to the parallel reaction behavior of this enzyme group, or the reaction with both the oxygen as well as the substrate, monooxygenases are also referred to as mixed-function oxygenases. Most monooxygenases are cytochrome P450 enzymes (CYP) that vary from one another in their substrate specificity.

Other enzymes of the phase I reaction are:

Catalysis of oxidations Catalysis of reductions Catalysis of hydrolysis
Mono-aminooxidases and monooxygenases containing FAD Cytochrome P450 enzymes Esterases
Xanthin oxidase Epoxide hydrolases, sometimes associated with cytochrome P450
ALDH (aldehyde dehydrogenase)
ADH (alcohol dehydrogenase)

The side effect of the first phase of the detoxification process is the production of free radicals, which attach to the cellular elements and leads to its damage. It is worth noting that both phases make use of a vital antioxidant, glutathione, which neutralizes the free radicals. In the event that many free radicals are produced in the first phase, glutathione may be exhausted. This leads to an imbalance in the activities in both phases resulting in a build-up of toxic reactions in the body.

Phase II reaction

With this biotransformation, also known as a conjugation reaction, substrates are bound to additional chemical groups. Substrates are both endogenous (steroid hormones, bilirubin, bile pigments) and exogenous substances (medications, alkaloids, preservatives, environmental toxins). Phase II reactions are distinctive in that the transferred groups were previously activated by binding to a coenzyme. They thus exhibit high group-transfer potential. A lot of energy is released during the split of the bonding phase, which is utilized during energy coupling for the transfer in the biotransformation reaction. Transferases are involved in all phase II reactions.

Conjugation with glucuronic acids:

The transfer of the glucuronic acids occurs through the UDP glucuronic acid to the OH, COOH, NH2, and SH groups of endogenous or exogenous substances. The resulting glucuronides are expelled through the gall bladder.

Conjugation with glutathione:

Glutathione is a natural form of protection for cells against oxygen radicals. It is made from the tripeptide Glu-Cys-Gly. The transfer to the substrate is catalyzed by the enzyme glutathione S-transferase (GST). In more precise terms, the conjugation is facilitated by the SH group of the central cysteine. After the split of the glutamine and glycine, the remaining amino group of the cysteine is acetylated, and mercapturic acid is formed, which is in turn expelled through the kidneys.

Conjugation with acetyl groups:

This transfer occurs with amino groups and is catalyzed by N-acetyltransferase. An inactivation of sulfonamides occurs in this manner, and the important tuberculostatic, isoniazid (INH), is of significance.

Conjugation with methyl groups:

S-adenosylmethionine is involved. The transfer takes place from methyl groups to N, O, and S atoms.

Conjugation with Sulfate Groups:

The sulfate group is separated from 3′-phosphoadenosine-5′-phosphosulfate (PAPS) and transferred to amino and OH groups.

Optimization of the detoxification process.

Phase 1:

  •  Sufficient intake of vitamin B and amino acids is required to optimize this process

Phase 2:

This process requires a sufficient intake of amino acids such as cysteine and methionine, as well as the intake of N-acetylcysteine.

  • To aid in the optimization of the entire detoxification process (phases 1 and 2), minerals such as copper and manganese, vitamins such as vitamin C and vitamin B12, as well as milk thistle, are required.

The Decomposition of Ethanol

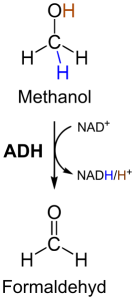

Decomposition of Ethanol

Image: Oxidation of methanol to formaldehyde by alcohol dehydrogenase (ADH). By Yikrazuul, License: Public Domain

In many industrialized countries, a large percentage of all diseases are attributed to alcohol abuse. Thousands of people die from the alcohol ‘drug’ annually. The role played by ethanol in energy metabolism is significant: A person could consume approximately the amount of ethanol per month, which comprises 5% of all consumed energy sources.

Ethanol, in the form of alcohol, is broken down in the liver to acetyl-CoA. This process occurs in 3 steps. First, the ethanol in the cytosol is oxidized to acetaldehyde by alcohol dehydrogenase. In turn, the acetaldehyde is oxidized to acetate by aldehyde hydrogenase.

Alcohol/aldehyde dehydrogenase requires NAD+ as an oxidant. The oxidation of ethanol takes place in the peroxisomes and is catalyzed by peroxidases. Oxidation with hydrogen peroxide (H2O2) occurs, which is reduced to H2O. Acetate is formed from this ethanol.

Upon frequent or chronic consumption of alcohol, as is the case with alcoholics, an inducible microsomal ethanol oxidase (MEOS) is also found in the endoplasmic reticulum. This system drives one method of ethanol metabolism in the liver independent of alcohol dehydrogenase; this was discovered by Lieber and DeCarli in 1968. The microsomal ethanol oxidase is a member of the cytochrome P450 family and the monooxygenases. This enzyme takes on an oxygen molecule and transfers one of the atoms to the substrate, and the other oxygen atom is converted to water by accepting 2 protons. The formation of acetic acid is catalyzed in this manner.

The conversion of other substrates can be decreased or deferred to toxic metabolites through the activity of the MEOS and the induced cytochromes. One example is the detrimental effect of some medications in alcoholics, in whom the side effects of a medication can be amplified.

Furthermore, it was determined that MEOS exhibits a sort of retention or memory function. This is because, after activation upon the first small sip of alcohol after withdrawal therapy, MEOS is regenerated and metabolizes ethanol very quickly. The pressure to drink more is thus increased and commonly results in relapse.

Alcohol Dehydrogenase

The name aldose reductase is used synonymously for alcohol dehydrogenase (ADH). The enzyme is an oxidoreductase and is located in the human body in both the liver and stomach. ADH catalyzes both the reaction of ethanol to an aldehyde, as is the case in the breakdown of alcohol, as well as the reverse reaction of acetaldehyde into ethanol, as occurs in the last step of alcoholic fermentation by yeast.

As with all enzymatically catalyzed reactions, the enzyme remains unchanged by the reaction. Depending on how much ADH is present in the body, one can conclude the amount of alcohol the individual can tolerate. This varies from person to person. Usually, people from East Asian countries as well as indigenous peoples are more sensitive to ethanol than Europeans, for instance, due to their less effective form of ADH.

It is assumed that, regardless of country of origin, at least 6 slightly different types of ADH coexist in the body. They all share the same structure, consisting of a dimer of 2 polypeptide chains, whereby each subunit contains 2 zinc ions essential for the enzyme’s function. The zinc ion is localized in the active center, and its function is to stabilize the hydroxyl groups of the ethanol. The cofactor NAD is involved in the oxidation of the ethanol to acetaldehyde: C2H5OH + NAD→ NADH+ + H+

Alcohol dehydrogenase is also responsible for other alcoholic substances, which are not truly toxic initially. For instance, it oxidizes methanol into the significantly more toxic methanal (formaldehyde), and ethylene glycol to glycolic or oxalic acid. This type of poisoning is treated by administering ethanol. As long as the ethanol is broken down in the liver, methanol is expelled through the kidneys and no poisoning will occur.

The presence of ADH has also been verified in insects, such as the fruit fly. However, this enzyme is not bound to a metal ion and is not related to human ADH whatsoever.

The Consequences of Alcohol Consumption

Regular consumption of alcohol is rumored to have preventative effects. A half-liter of beer or wine per day is said to decrease the risk of arteriosclerosis. Excessive consumption of alcohol, however, is dangerous. The breakdown of ethanol in the liver results in the overproduction of NADH and acetyl-CoA.

NADH inhibits the citric acid cycle and acetyl-CoA increases the synthesis of triacylglycerol (TAG) and fatty acids. This results in the formation of a fatty liver. Eventually, this will inflame and develop into a fatty liver. To protect itself, the liver produces more and more conjunctive tissue. This progresses into an advanced state of cirrhosis of the liver.

Analysis of mitochondrial transcription factor A SNPs in alcoholic cirrhosis

Image: Analysis of mitochondrial transcription factor A SNPs in alcoholic cirrhosis. By Openi, License: CC BY 3.0

The growth of conjunctive tissue in the liver makes continuous, uninterrupted blood flow impossible. A clot appears in the portal vein. The blood seeks other ways to the heart, including along the stomach. This causes severe widening of the vessels, which morphologically look like varicose veins and bear the name varices. However, these vessels are not designed for the additional blood and are exposed to a high risk of collapsing (variceal hemorrhage). Bilirubin, a byproduct of hemoglobin, is now increasingly transported in the blood, causing the skin and the underlying vessels to appear yellow (jaundice = icterus).

Note: For a healthy liver, the diet should consist of the following:

  1. Fruits
  2. Fiber
  3. Water
  4. Vegetables

Also, alcohol and processed foods should be avoided.
