The carotid arterial system provides blood supply to the head and neck. The aorta arches towards the left and backward before going downwards to supply freshly oxygenated blood to the body. Three major vessels branch off from the arch of the aorta to supply blood to the upper limbs and head and neck.
Are you more of a visual learner? Check out our online video lectures and start your anatomy course now for free!

Anatomy of the head and neck, descriptive and surgical

Image: “Anatomy of the head and neck, descriptive and surgical” by Gray, Henry 1825-1861, Pick, T. Pickering (Thomas Pickering) 1841-1919, ed Keen, William W. (William Williams) b. 1837, Internet Archive Book Images, License: No restrictions


The Arteries of the Upper Body

The 3 major vessels branching off from the arch of the aorta are:

Aorta

Image: “Arch of the aorta” by Henry Vandyke Carter – Henry Gray (1918), License: Public Domain

1. The brachiocephalic artery

2. The left common carotid artery

3. The left subclavian artery

The brachiocephalic artery (also known as the innominate artery) is the first branch of the arch of the aorta, which supplies the right side of the body above the heart. This vessel bifurcates behind the sternoclavicular joint into:

  1. The right common carotid artery which moves upward into the neck and gives off branches supplying the structures of the neck, face, and brain.
  2. The right subclavian artery which supplies the right shoulder and right upper limb.

The left common carotid artery and left subclavian artery arising directly from the arch of the aorta to supply similar territories on the left side of the body.

Common Carotid Artery

The common carotid artery on either side bifurcates at the level of the upper border of the thyroid cartilage into:

  1. The external carotid artery
  2. The internal carotid artery

Note: The common carotid artery has no branches proximal to the bifurcation.

Since the left common carotid emerges directly from the arch of the aorta, it has a thoracic part and a cervical part. The thoracic part is the part of this artery found in the chest, while the cervical part is the artery located in the neck.

The right common carotid artery has the cervical part only.

Thoracic part

Aorta with branches

Image: “Collateral circulation after ligation of subclavian and common carotid arteries” by Deaver, John B. (John Blair), 1855-1931, License: Flickr Commons

In the chest, the left common carotid artery has the following anatomical relations:

Anterior:

Posterior:

  • Trachea;
  • Esophagus;
  • Left recurrent laryngeal nerve; and
  • Thoracic duct

Right:

  • Brachiocephalic trunk

Left:

  • Phrenic nerve;
  • Left vagus; and
  • Left pleura

Cervical part

Both the common carotids have similar relations in the neck and move obliquely upwards towards the thyroid cartilage where they divide into external and internal carotid arteries. These pass behind the sternoclavicular joint initially separated from each other by the trachea, and later by the thyroid gland and laryngeal cartilages.

Carotid sheath

Image: “Carotid sheath” by Häggström, Mikael. “Medical gallery of Mikael Häggström 2014”, License: Public Domain

In the neck, the carotid sheath (fibrous connective tissue) covers the common carotid artery, vagus nerve, and internal jugular vein.

The vein is the most lateral structure within the carotid sheath, followed by the nerve and then the artery, which is the most medial structure. Each of these components of the carotid sheath has a separate fibrous compartment.

The common carotid artery is covered by the superficial fascia, the platysma muscle, deep cervical fascia, and the neck muscles, like the sternocleidomastoid, sternohyoid, sternothyroid, and omohyoid in the lower neck.

The common carotid artery is relatively superficial in the upper part of the neck, covered merely by the superficial fascia, the platysma muscle, deep cervical fascia, and medial margin of the sternocleidomastoid muscles.

Branches of the Common Carotid Artery

At the level of the thyroid cartilage at approximately the 4th cervical vertebra, the common carotid artery bifurcates into:

  1. The external carotid artery (ECA)
  2. The internal carotid artery (ICA)

The common carotid artery does not give any branch proximal to the bifurcation.

The external carotid artery, just as the name suggests, is relatively superficial in its path and supplies superficial structures and parts of the neck and face.

The internal carotid artery, as the name suggests, takes a deeper route and supplies structures within the brain and the orbits. It has no branches in the neck, hence, will not be discussed further in this article.

The Carotid Body

The carotid body is a small, oval-shaped, reddish-brown body that consists of a cluster of chemoreceptors and is present at the bifurcation of the common carotid artery. The carotid body functions as a sensor and detects changes in the arterial blood composition by detecting partial pressure of oxygen and changes in blood pH.

Clinical significance

Pulse: The common carotid artery is often used to measure pulse, especially in patients with shock and in those with an undetectable peripheral pulse.

The common carotid artery is palpated below the angle of the mandible and at the upper border of the thyroid cartilage on the anterior border of the sternocleidomastoid muscle. If a carotid pulse is present, systolic blood pressure is often estimated to be more than 40 mm Hg.

  • Carotid artery stenosis may occur in patients with hypercholesterolemia and atherosclerosis and is one of the risk factors for ischemic stroke.
  • The thickness of the intima-media of the carotid artery wall is a marker of subclinical atherosclerosis which a normal occurrence in old age.
  • Carotidynia is a syndrome that causes inflammation and tenderness of the common carotid artery near the bifurcation.

The External Carotid Artery

The external carotid artery is one of the two main branches of the common carotid artery; the other being the internal carotid artery. The internal carotid artery, as mentioned above, supplies the deep structures within the brain and orbits and has no cervical branches, while the external carotid artery supplies the superficial structures of the neck, face, jaw, scalp, and coverings of the brain, also known as the meninges.

The external carotid artery starts at the upper border of the thyroid cartilage; initially curving upward and moving forward, then inclining backward to space just at the back of the neck of the mandible, giving terminal branches known as the superficial temporal artery and the maxillary artery.

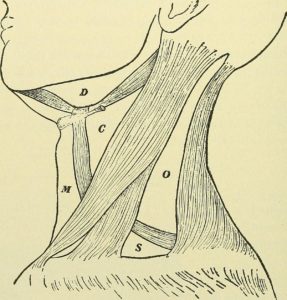

C – The carotid triangle

Image: “The Carotid triangle (C)” by Internet Archive Book Images, License: No restrictions

At the origin, the external carotid artery is more superficial and lies within the carotid triangle of the neck which is a sub-triangle within the anterior triangle of the neck (labeled ‘C’ in the image). More specifically, the external carotid artery is bounded by the posterior belly of the digastric muscle (superiorly), the superior belly of the omohyoid muscle (inferiorly), and the sternocleidomastoid (laterally).

The external carotid artery reduces in size while moving up the neck, giving various branches along the way. In children, the external carotid artery is also smaller than the internal carotid artery, but the 2 vessels are roughly equal size in adults.

Branches of the External Carotid Artery

The branches of the external carotid artery can be subdivided into groups:

Branches arising within the carotid triangle

External carotid artery

Image: “The external carotid artery and its branches” by Häggström, Mikael. “Medical gallery of Mikael Häggström 2014”, License: Public Domain

A. Anterior branches

  1. Superior thyroid artery – supplies the thyroid gland
  2. Lingual artery – supplies the tongue
  3. Facial artery – supplies the face

B. Medial or deeper branch

Ascending pharyngeal artery – supplies the pharynx

C. Posterior branch

Occipital artery – supplies the occipital part of the scalp

D. Ascending branch

Posterior auricular artery – supplies posterior to the ear.

E. Muscular branch

Sternocleidomastoid artery – supplies the sternocleidomastoid muscle

Terminal branches

Maxillary artery – larger of the two terminal branches, has three parts which are further divided into multiple branches and supplies the deep structures of the face

Superficial temporal artery – arises within the parotid gland and supplies part of the face and the scalp

Relations of the external carotid artery

Anterior:

The artery is anteriorly covered by the skin, superficial fascia, platysma muscle, deep fascia, and anterior margin of the sternocleidomastoid muscle.

The hypoglossal nerve, the lingual, common facial and superior thyroid veins cross this artery in the neck while the posterior belly of the digastric and stylohyoid muscle cross anteriorly.

Posterior:

Near its origin, the superior laryngeal nerve is posterior to the artery (and then goes medially). Superiorly, it is separated from the internal carotid artery by the styloglossus and stylopharyngeus muscles, the glossopharyngeal nerve, the pharyngeal branch of the vagus nerve, and the deep lobe of the parotid gland.

Medial:

The hyoid bone, pharynx, superior laryngeal nerve, and the parotid gland.

Lateral:

Internal carotid artery.
