Retroviruses. HAART. Sexual transmissibility. All buzz words that most people immediately link with HIV infection. Although HIV is only briefly mentioned as part of immunology studies, it’s essential for physicians to create themselves a picture of the sources, expression of the infection, therapy as well as understanding the development of the disease from a death sentence to a chronic disease as a result of improved treatment options. This article will help you to be properly prepared for clinical work, tests and medical examinations.

Picture: "HIV" by BruceBlaus. Lizenz: CC BY-SA 4.0

Are you more of a visual learner? Check out our online video lectures and start your pathology course now for free!

Definition und Overview

AIDS as the latter stages of an HIV-Infection

HIV (Human Immunodeficiency Virus) causes an acquired immune deficiency and has different latency periods from individual to individual. Immune deficiency depends primarily on the advancement of the destruction of CD-4 Helper T cells.

Acquired Immune Deficiency Syndrome (AIDS) describes the late stages of HIV infection and is characterized by opportunistic diseases (AIDS defining diseases). To date there is no causal therapy for the disease.

The antiretroviral therapy HAART was presented at the world AIDS congress in Vancouver in 1996, 15 years after the first report about AIDS in the “Morbidity and Mortality Weekly Report”. Due to further development and increased availability of the treatment, the worldwide morbidity rate was able to be massively reduced. There were 1.5 million deaths due to the disease in 2013, whereas in the middle of the previous decade, that figure was still 2.2 million.

Epidemiology of AIDS

Strong prevalence of AIDS in West Africa

According to UNAIDS, the last major wave of infection in the USA occurred in the 1980s. Large scale campaigns promoting “Safer Sex” helped to reduce the number of new cases by 1990. An estimate in 2010 suggested there were 33 million infected people worldwide, and 2.6 million new cases each year (UNAIDS).

Worldwide: The most affected area in the world is sub Saharan Africa. HIV-1 is pandemic and is primarily found in West Africa. In Eastern Europe, the number of new cases of infection has drastically increased in the last few years.

USA: Although more females are infected worldwide, bisexual males are primarily affected in the USA. Each year there are approximately 50.000 new cases diagnosed in the United States alone.

Germany: Mainly affected are men with about 65.000 infected (Germany, 2013), women with 15.000. 3.000 women are newly diagnosed each year.

Percentage of adults that are infected with HIV per country at the end of 2005

Percentage of adults that are infected with HIV per country at the end of 2005. Dark red: 15–50% (15-50 people out of 100), Red: 5–15% (5-15 people out of 100), Orange: 1–5% (1-5 people out of 100), Dark yellow: 0.5–1.0% (1-2 people out of 200), Yellow: 0.1–0.5% (1-5 people out of 1000), Green: < 0.1% (less than 1 person out of 1000), Grey: Greenland no data

Etiology und Pathogenesis of AIDS

AIDS pathogens

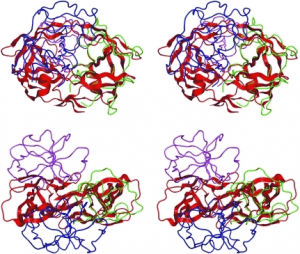

Stereoview of superposition of the Cα atoms of the HIV-1 PR protomer (PDB entry 3hvp, red) on monomer A of M-PMV PR in the crystal structure (green)

Picture: “Stereoview of superposition of the Cα atoms of the HIV-1 PR protomer (PDB entry 3hvp, red) on monomer A of M-PMV PR in the crystal structure (green).” by Openi. License: CC BY 2.0 UK

HIV-1 and HIV-2 are retroviruses belonging to the lentivirus genus. They are cuboid, enveloped viruses with linear (ss) RNA. Genetic information is stored in the RNA: reverse transcriptase from the human host is used to transcribe the RNA into protein-coding DNA.

The target cells are all CD4 receptor carrying cells of the body:

  • T-Helper Cells
  • CD4 positive monocyte cells: Monocytes, macrophages and dendritic cells.

HIV enters the Langerhans cells through mucous membrane defects and is then further transported to the lymph nodes. The virus penetrated the T-Lymphocytes through their CD4 receptors and destroys them. The virus spreads through the rest of the body through lymphatic vessels. This results in severe immune deficiency with the risk of contracting major opportunistic infections.

Note: A sufficient immune response can no longer be raised at counts of < 400/µl.

Transmission of HIV

All bodily fluids contain the Human Immunodeficiency Virus in varying quantities. The most significant amounts are found in blood, sperm, vaginal secretions and breast milk. The likelihood of transmission depends upon the virus load.

Sexual Transmission

The most common route of infection is homosexual intercourse in males, followed by infection via heterosexual intercourse. In these cases, the risk of infection depends on the size of the virus load in the transmission secretion.

Note: Ejaculate has a significantly higher concentration of HIV than vaginal secretion, so women have a higher risk of contracting the virus through unprotected sexual intercourse.

Parenteral Transmission
The third most common method of transmission is from intravenous drug abuse (7.800). Even transmission within medical professions occurs rarely.

Vertical Transmission
Mother-child transmissions or transmission by blood transfusion are infrequent (1 in 1 million)

Incubation period for HIV

The incubation period is between three and six months and is usually not visible during the first two months. In 6 % of infections, the disease becomes AIDS after around two years.

CDC Stages of HIV Infection

The CDC (Center of Disease Control) stages allow for classification of the progression of the disease in combination with the Helper T Cell count. The normal value for helper T Lymphocytes is 650 – 1250/μl.

A1, B1, C1 Helper T Lymphocytes > 500/μl
A2, B2, C2 Helper T Lymphocytes 200 – 499/μl
A3, B3, C3 Helper T Lymphocytes < 200/μl

Stage A

There are three stages. Stage A can be accompanied by an influenza like symptom complex (50 – 90 % also suffer from acute retroviral syndrome –fever, angina, lymphadenopathy, exanthema, muscle and joint pain), however even completely asymptomatic patients (latent phase) suffer from reduced performance, symptoms of exhaustion such as tiredness and lethargy.

Lymphadenopathy syndrome is defined as generalized lymph node swelling for longer than three months.

Stage B

Amongst the non AIDS defining diseases are:

  • Herpes Zoster
  • Candidiasis
  • Oral hairy leukoplakia
  • Chronic diarrhea
  • Changed in the blood count with anemia, thrombocytopenia and neutropenia
  • Infections with molluscum contagiosum
  • Oviduct or ovarian abscesses
  • Listeriosis

Stage C: AIDS-defining diseases

The pathogen spectrum of opportunistic infections that do not cause infection in immunocompetent people is far reaching.

  • Wasting-Syndrome with significant cognitive and vigilance impairment, depression and ataxia
  • Encephalopathy associated with HIV: slowly progressing dementia with deficits in emotion, cognition and motor skills due to progressive CNS inflammation

Bacterial infections

  • Tuberculosis
  • Cerebral Toxoplasmosis (most common neurological AIDS Manifestation)
  • Salmonella septicemia

Mycotic and parasitic infections

This patient presented with a secondary oral pseudomembraneous candidiasis infection

Picture: “This patient presented with a secondary oral pseudomembraneous candidiasis infection.” by Sol Silverman, Jr., D.D.S.. License: Public Domain

  • Pneumocystis jirovecii pneumonia
  • Cryptococcal meningitis
  • Candidiasis
  • Coccidioidmycosis (extrapulmonary/disseminated)

Viral infections

  • Cytomegalic manifestations
  • Herpes Simplex encephalitis
  • Progressive multifocal Leukoencephalopathy (triggered by the JC virus)

AIDS-defining malignancies

  • Kaposi’s sarcoma on the skin of an AIDS patient

    Picture: “Kaposi’s sarcoma on the skin of an AIDS patient.” by National Cancer Institute. License: Public Domain

    Non-Hodgkin’s Lymphoma of the B Cell type

  • Cervical carcinoma
  • Kaposi sarcoma (associated HHV8)
  • Invasive cervical carcinoma and anal carcinoma

Diagnosis of AIDS

Anamnesis and clinical examination of AIDS

The anamnesis should focus in particular on: health complaints, medication, travel and sexual history. The clinical examination should particularly focus on weight, lymph node status and opportunistic infections.

Pathogen identification and CD4 cell count

Indirect viral screening

  • Screening test: Antibody screening with HIV ELISA. ELISA has a high sensitivity but not 100 % specificity. A positive test result required further testing to confirm the findings.
  • Confirmatory test: Western blot. The western blot test has a very high specificity but despite that, a second positive test should be confirmed before feeding the results back to the patients.

Direct virus identification

Micrograph from a transmission electron microscope of HIV Retrovirus, sample taken of diluted infectious serum, isolated

Picture: “Micrograph from a transmission electron microscope of HIV Retrovirus, sample taken of diluted infectious serum, isolated” by PhD Dre at en.wikipedia. License: CC BY-SA 3.0

Direct identification of HIV can be done by electron microscopy, virus isolation and PCR testing.

Virus quantification

Virus quantification via PCR serves as a therapeutic device and also for monitoring purposes. The detection limit is 20 – 50 copies/ml.

Determination of the CD4 Helper T Lymphocyte count

The amount of CD4 Helper T Lymphocytes can be determined via flow cytometry. The CD4 count is a component of CDC classification.

Note: The CD4 Helper T Lymphocyte count and virus quantification are parameters which allow a judgement of the extent of the immune deficiency.

Differential Diagnosis

Stage Possible differential diagnosis Landmark studies
Acute retroviral syndrome
  • Mononucleosis
  • Unspecified viral infection
  • Drug eruption
  • EBV-Serology
  • Drug anamnesis
Lymphadenopathy syndrome
  • Tuberculosis
  • Malign lymphoma
  • Toxoplasmosis
  • Lymph node biopsy
  • Toxoplasmosis serology
Opportunistic infections
  • Primary (congenital) immune defect
  • Secondary (acquired) immune defect of other origins
  • Anamnesis
  • Exclusion of other causal diseases such as immunosuppressive therapy or hematologic neoplasia

Source: Genzwürker et al. (2014): AllEX – Alles fürs Examen. Thieme Verlag, p. 533.

Therapy of AIDS

Antiretroviral Treatment for AIDS prevention

In the USA, around 57 % of the HIV/AIDS budget is used for antiretroviral treatment.

The current recommended lower limit for Helper T Cell value is 200/µl. It has been argued that it begins as early as 200 – 350/µl however.

Currently HAART (highly active antiretroviral therapy) consists of at least three antiretroviral drugs used to treat HIV infection: two nucleoside reverse transcriptase inhibitors (NRTIs) and a non-nucleoside reverse transcriptase inhibitor (NNRTI) or a protease inhibitor (PI). The term HAART is presently being replaced by cART (combined anti-retroviral therapy) as this term better describes the combination of drugs used.

  • 2 Nucleoside reverse transcriptase inhibitors (NRTI): Zidovudine (AZT), Lamivudine, Abacavir
  • 1 Non-nucleoside reverse transcriptase inhibitor (NNRTI): Nevirapine, Efavirenz
  • 1 Protease Inhibitor (PI): Indinavir, Ritonavir, Nelfinavir, Lopinavir
  • 1 Integrase Inhibitor: Raltegravir

Chemoprophylaxis: In order to avoid an outbreak of opportunistic infections, chemoprophylaxis is carried out consisting of co-trimoxalole (for pneumocystis jirovecii pneumonia and toxoplasmosis) and isoniazid (for tuberculosis)

A detailed overview of antiretroviral therapy can be found in “Guidelines for the Use of Antiretroviral Agents in HIV-1-Infected Adults and Adolescents” .

Side effects

Among the undesirable side effects of antiretroviral therapy are:

  • Bone marrow depression
  • Polyneuropathy
  • Headaches, nausea
  • Hypersensitivity reactions
  • Diarrhea
  • Nephrotoxicity
  • Transaminases
  • Exanthema


Metabolic changes are most commonly observed during treatment with cART/HAART: Lipoatrophy, lipodystrophy, pathological glucose tolerance, diabetes mellitus and hyper- or dyslipidemia. These changes are associated with an increased cardiovascular risk.


How AIDS can be avoided

  • “Safer sex“ (Using condoms)
  • Education for the general public
  • Avoiding sexual intercourse with unknown and promiscuous partners
  • Use of sterile instruments for drug abuse
  • In medical professions: protective gloves, face masks and protective glasses

Post Exposure prophylaxis (PEP)

In the case of accidental contact with exposure of the mucous membranes or parenteral contact with potentially HIV containing materials, PEP can be considered. Risk of infection due to a percutaneous injury: 1 in 300. Immediate PEP with antiretroviral drugs has been proven to be effective in case control studies. PEP does not only play an important role in medical professions, but it has also been successfully used after unprotected sexual intercourse (i.e. following a rape) or after patients have shared needles during drug abuse

Note: The risk of HIV infection following a needle stick injury can be reduced by 80 % if the antiretroviral therapy is started within 2 hours of the accident.

Prognosis of AIDS

Access to drugs determines the progression of AID

Since the introduction of antiretroviral therapy, the life expectancy of HIV patients has drastically changed.

However this is only the case if two main points are observed in patients:

  • Access to drugs
  • Compliance

The Swiss Cohort Study, initiated in 1988 was able to determine that only 9 % of HIV patients died from AIDS, while 24 % died from non-AIDS defining carcinomas. The Swiss Cohort Study (SHCS) is a longitudinal study within Swiss university hospitals, canton hospitals and practicing doctors who treat HIV patients. Its primary aim is to “provide optimal patient care, reduce HIV transmission and to conduct research”. This progress is naturally not congruent with the global situation, where the majority of patients still have no access to the necessary drugs.

Popular Exam Questions about HIV Infection and AIDS

Answers can be found below the references.

1. Which of the following groups of drugs does not belong to the antiretroviral AIDS treatments?

  1. Nucleoside Reverse Transcriptase Inhibitors
  2. Non-Nucleoside Reverse Transcriptase Inhibitors
  3. Transferase Inhibitors
  4. Protease Inhibitors
  5. Integrase Inhibitor

2. Which of these diseases is typical for stage C in the CDC stage classification system for HIV infection?

  1. Oral hairy leukoplakia
  2. Chronic diarrhea
  3. Oviduct or ovarian abscesses
  4. Listeriosis
  5. Cryptococcal Meningitis

3. HIV is a retrovirus. Which group do retroviruses belong to?

  1. Hantaviruses
  2. Lentiviruses
  3. Flaviviruses
  4. Rhadinoviruses
  5. Rubiviruses
