Pulmonary Artery Catheter Guide

Pulmonary artery catheters, also known as Swan-Ganz catheters, are advanced hemodynamic monitoring tools inserted into the pulmonary artery to measure cardiac output, pulmonary artery pressures, and other vital parameters.
Last updated: June 28, 2024

Table of contents

What is a pulmonary artery catheter?

Pulmonary artery catheters (PAC) are balloon-tipped catheters used for intravenous hemodynamic monitoring.

A series of ports along the length of the catheter can be used to assess distinct measurements within the cardiac and vascular structures in which they sit.

PAC use has been declining in favor of less invasive echocardiography techniques in the assessment of many critical conditions; however, the PAC continues to be an excellent tool for assessing pulmonary hypertension, cardiogenic shock, and unexplained dyspnea.

List of indications:

  • Diagnosis or evaluation of pulmonary hypertension
  • Assessment of  vascular resistance
  • Determination of etiology in cases of shock
  • Assessment of volume status in severe shock
  • Evaluation of pericardial illnesses such as cardiac tamponade or constrictive pericarditis
  • Assessment of right-sided valvular disease or congenital heart disease
  • Evaluation of intracardiac shunts

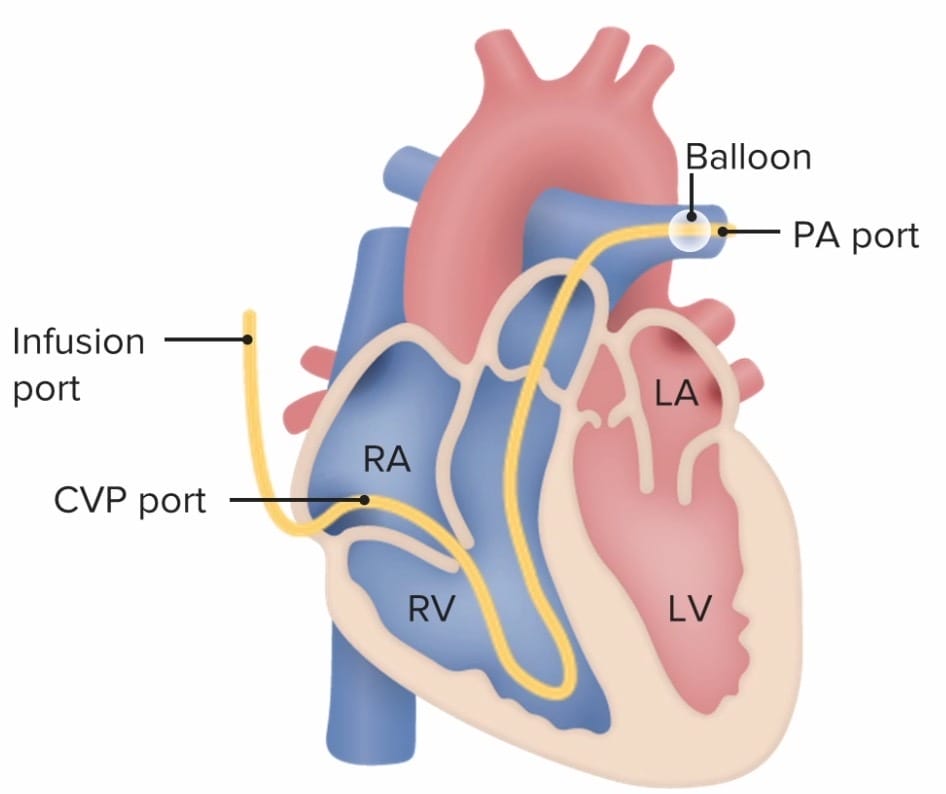

Pulmonary artery catheter placement

The catheter is inserted through a central vein, jugular, or subclavian vein, as the femoral vein is usually avoided. It is then advanced through the right side of the heart to rest in the pulmonary artery (PA).
Ad 4nxeddwtvlxkk6lmqs5ghmh46vvhp4mealpx0qug0fb4atvi8ylzfnl cab7ilyrpbn9ncpommu8dnc73 umftpq 0mamcr9r3qszwo3pj6ymfjvywzniabsi7lm9z0bzdbpngd1u5wipg7elnoizcpmvznn? Key=wxpg

Pulmonary artery catheter waveforms and monitoring

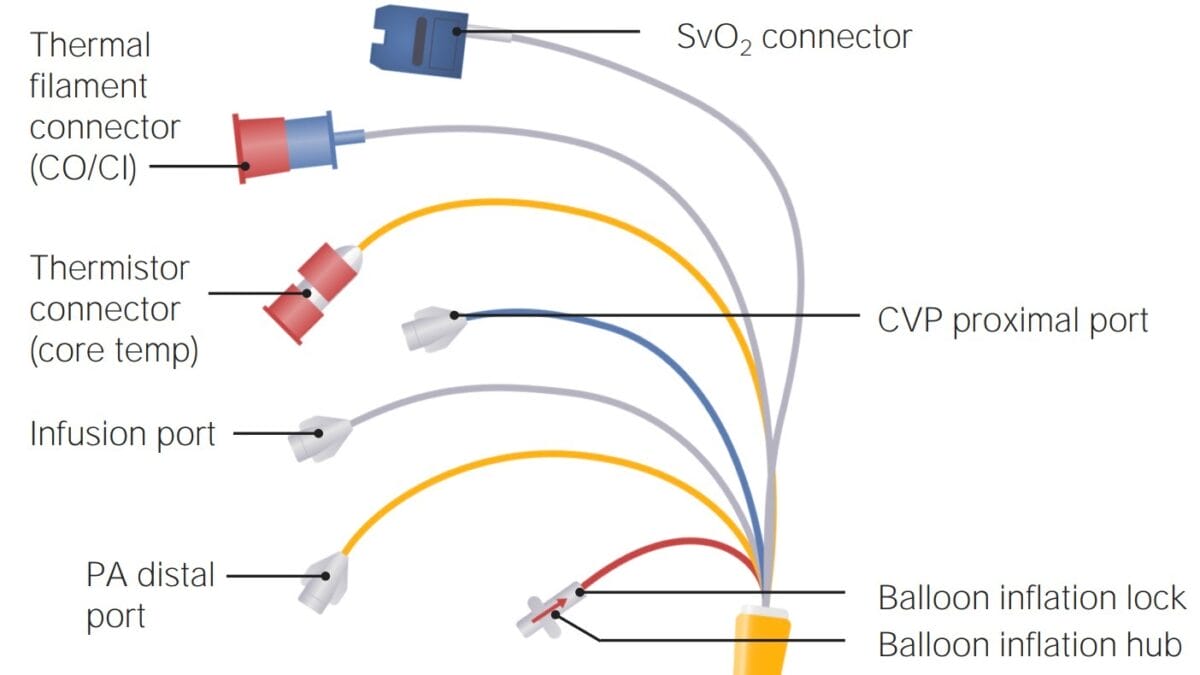

A variety of measurements are derived from waveforms generated by the catheter, blood samples drawn for the catheter ports, and a temperature sensor in the case of core temperature measurement.

Ad 4nxcyi7 ysbxkryo5j1rtjl mgjkr 36ky reh0o6 zdiyqrz 9hsxpssdht9ccgyg9pbjhca 4mifi8ytrnnd5omygieqw17oq3hhldkf2utg2zh3jxgozgdvyvbir4wkdsxt qqwfouikaj8ieu984jyg9d? Key=wxpg

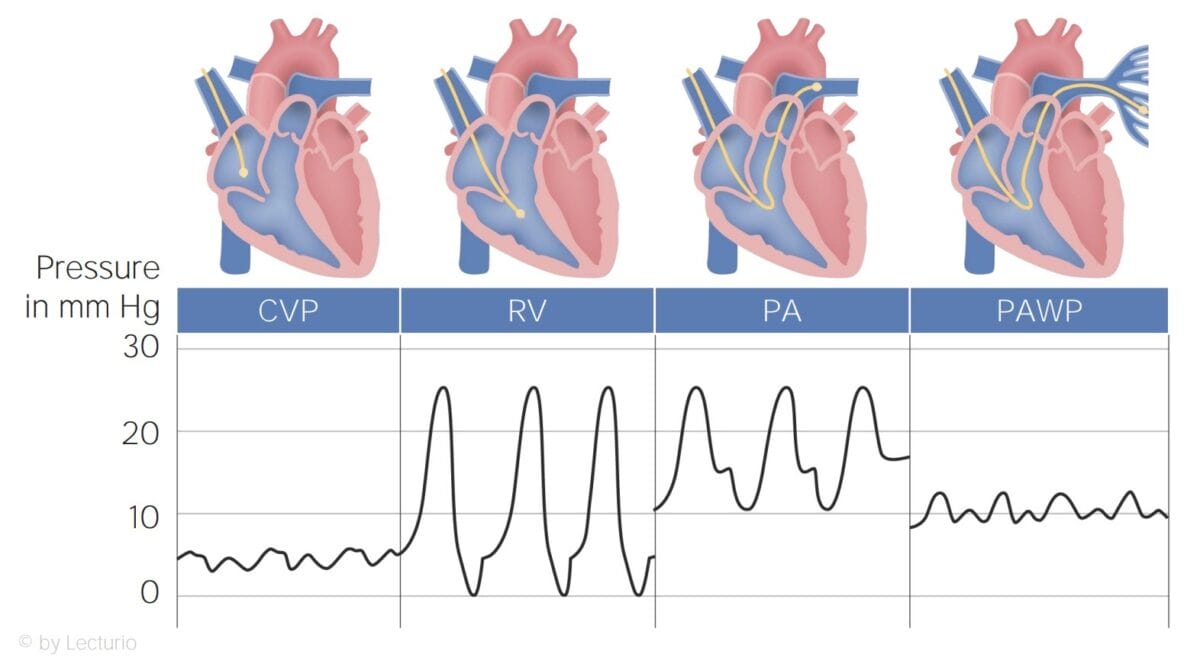

Monitoring parameters

  • Cardiac output (CO)
  • Pulmonary artery pressure (PAP)
  • Mixed venous oxygenation (SvO2)
  • Pulmonary artery wedge pressure (PAWP): 3 “bumps” in waveform called waves
  • Central venous pressure (CVP): shown as 2 “bumps” in waveform
  • Core temperature
Ad 4nxdwkocrwyjssbq4ksimm8jkcvfas0dok12x3mdjfr0limgqd doba9lnkcjmndlvb6vinii3qutijejevhba8fieu9xpwvvk0x3lh0vumdilmamy5j6kmoeushzacscwq78do19e5 aoei4os5vfxubtjk? Key=wxpg

Nursing care tasks:

  • Educate clients and family about the purpose of the pulmonary artery catheter, as well as risks, benefits and possible complications.
  • Ensure that informed consent has been given and documented.
  • Organize necessary supplies and equipment; assist with PAC insertion as needed.
  • Maintain PAC set up, coordinate dressing changes as ordered, ensure asepsis for infection prevention.
  • Monitor PAC waveforms continuously; document the indicated parameters as ordered.
  • Notify the provider of any change in client status, or if  PAC is displaced or in need of adjustment.

Pulmonary artery catheter removal

Procedure

Start with reviewing the catheter removal order. Ensure that any medications previously administered through the PAC have been discontinued or relocated to another appropriate infusion site. Gather and organize supplies, and explain the procedure to the client.

  • Assist client into supine position.
  • Ensure that balloon is deflated.
  • Turn stopcocks off to client, discard all intravenous
    solutions or flushes.
  • Perform hand hygiene.
  • Don mask and face shield or goggles.
  • Remove old dressing and unlock sheath from
    introducer.
  • Instruct client to turn face away from PAC site,
    take a deep breath and hold it, or hum.
  • Secure introducer site with one hand and gently
    withdraw PA catheter with the other hand, while
    monitoring for arrhythmias.
  • Apply and lock introducer cap as soon as catheter
    is removed.
  • Inspect catheter after removal to be sure it is intact.
  • Clean insertion site with a chlorhexidine wand.
  • Place new chlorhexidine dressing over introducer site.

After removal, monitor for signs of bleeding or infection at the insertion site.

Pa catheter removal: risks and complications

Free download: PAC removal and complications

Quick summary of the steps for pulmonary artery catheter removal and risks

Risks and potential complications during PAC removal

  • Valvular injury: If the balloon at the catheter tip is inflated during catheter removal, it may cause damage as it passes through the cardiac valves. Ensure that the balloon is fully deflated before initiating catheter removal.
  • Air embolism: If the client breathes in during PAC removal, an air embolism may occur. Prevent this complication by educating the client and involving them in the procedure. Instructing the client to hold their breath or hum avoids an in-breathe during catheter removal.
  • Arrhythmias: The catheter tip may irritate the cardiac muscle, leading to arrhythmias during the catheter removal process. Though often transient, monitor the clients cardiac rhythm carefully and be ready to intervene if needed.
  • Infection: Maintain sterile technique during removal. Monitor carefully for signs of infection.
